FAG 231/850-B-K-MB
Spherical Roller Bearings
Spherical roller bearing 231..-B-K-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

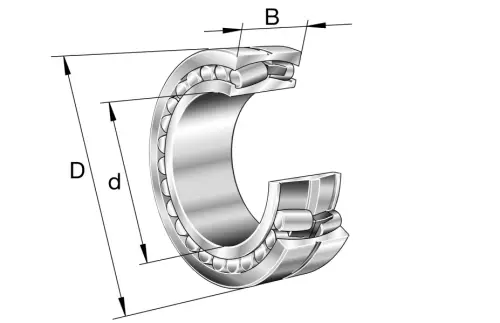

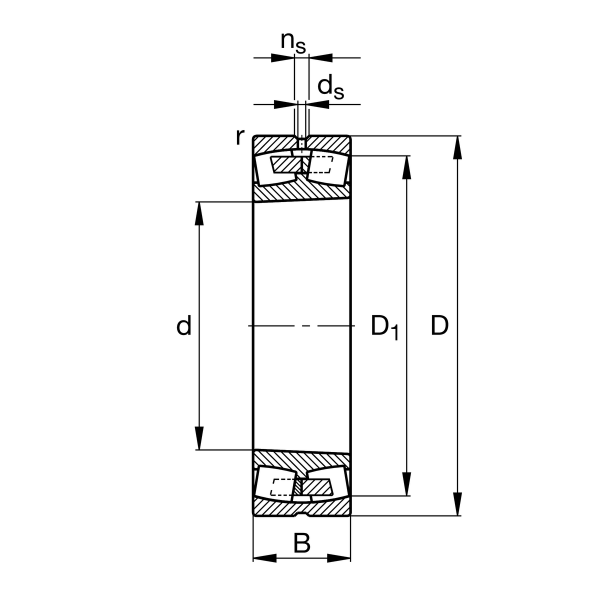

Main Dimensions & Performance Data
d
850 mm
Bore diameter
D
1,360 mm
Outside diameter
B
400 mm
Width
Cr
16,100,000 N
Basic dynamic load rating, radial
C0r
36,000,000 N
Basic static load rating, radial
Cur
2,340,000 N
Fatigue load limit, radial
CG
385 1/min
Limiting speed
nϑr
164 1/min
Reference speed
≈m
2,240 kg
Weight

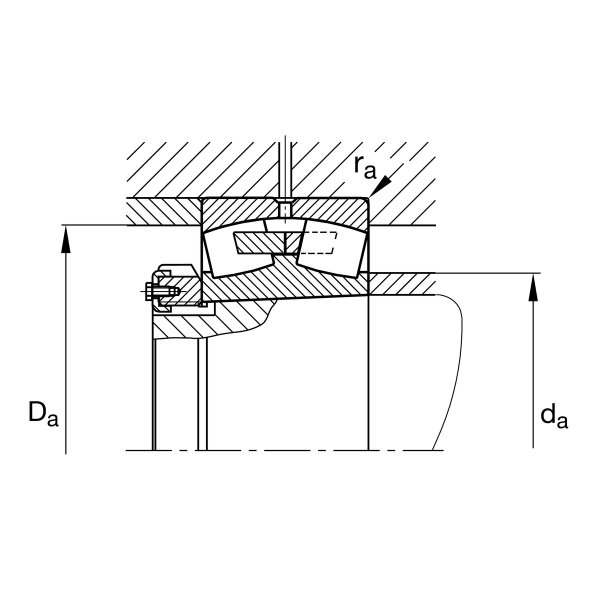

Mounting dimensions
da min
898 mm
Minimum diameter shaft shoulder
Da max
1,312 mm
Maximum diameter of housing shoulder
ra max
10 mm
Maximum recess radius
