FAG 23140-BE-XL
Spherical roller bearing 231..-BE-XL, symmetric with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

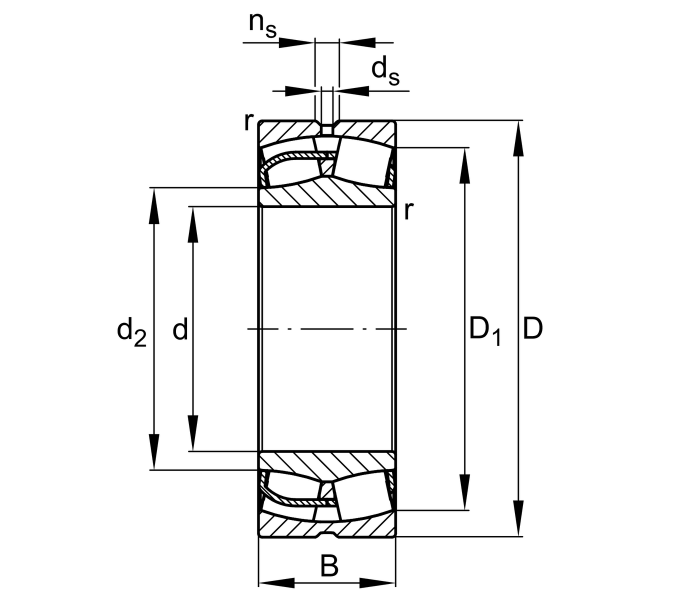

Main Dimensions & Performance Data
d
200 mm
Bore diameter
D
340 mm
Outside diameter
B
112 mm
Width
Cr
1,610,000 N
Basic dynamic load rating, radial
C0r
2,270,000 N
Basic static load rating, radial
Cur
193,000 N
Fatigue load limit, radial
CG
2,040 1/min
Limiting speed
nϑr
1,230 1/min
Reference speed
≈m
40.28 kg
Weight
Mounting dimensions
da min
214 mm
Minimum diameter shaft shoulder
Da max
326 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
