FAG 23148-BE-XL
Spherical roller bearing 231..-BE-XL, symmetric with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

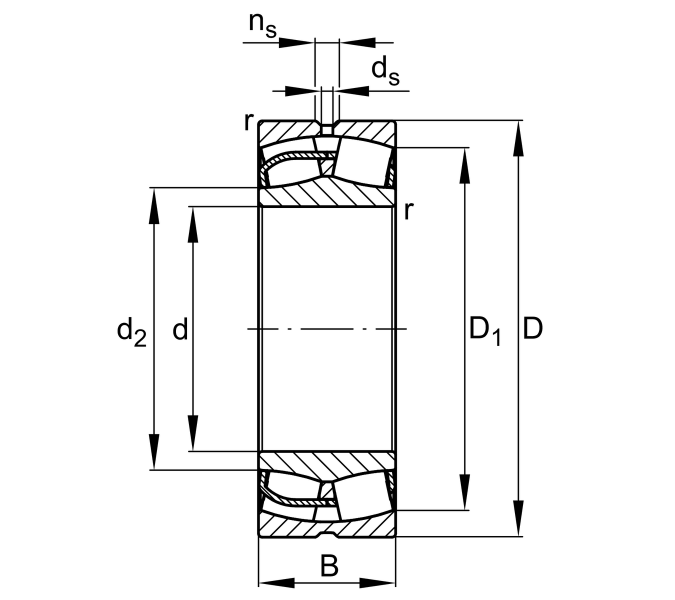

Main Dimensions & Performance Data
d
240 mm
Bore diameter
D
400 mm
Outside diameter
B
128 mm
Width
Cr
2,130,000 N
Basic dynamic load rating, radial
C0r
3,150,000 N
Basic static load rating, radial
Cur
255,000 N
Fatigue load limit, radial
CG
1,700 1/min
Limiting speed
nϑr
970 1/min
Reference speed
≈m
62.465 kg
Weight
Mounting dimensions
da min
257 mm
Minimum diameter shaft shoulder
Da max
383 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
