FAG 23164-BEA-XL-MB1
Spherical roller bearing 231..-BEA-XL-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

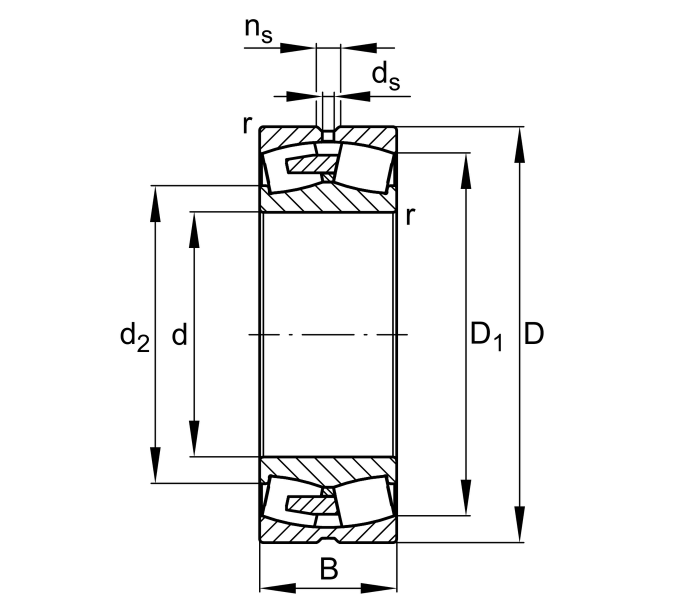

Main Dimensions & Performance Data
d
320 mm
Bore diameter
D
540 mm
Outside diameter
B
176 mm
Width
Cr
3,800,000 N
Basic dynamic load rating, radial
C0r
5,900,000 N
Basic static load rating, radial
Cur
425,000 N
Fatigue load limit, radial
CG
1,170 1/min
Limiting speed
nϑr
650 1/min
Reference speed
≈m
163.58 kg
Weight
Mounting dimensions
da min
340 mm
Minimum diameter shaft shoulder
Da max
520 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
