FAG 23172-BEA-XL-MB1

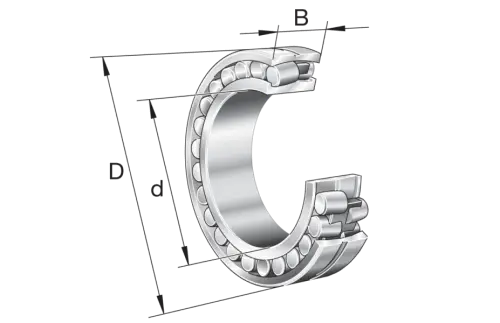

Spherical roller bearing 231..-BEA-XL-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
360 mm
Bore diameter
D
600 mm
Outside diameter
B
192 mm
Width
Cr
4,550,000 N
Basic dynamic load rating, radial
C0r
7,100,000 N
Basic static load rating, radial
Cur
510,000 N
Fatigue load limit, radial
CG
1,040 1/min
Limiting speed
nϑr
560 1/min
Reference speed
≈m
216.32 kg
Weight

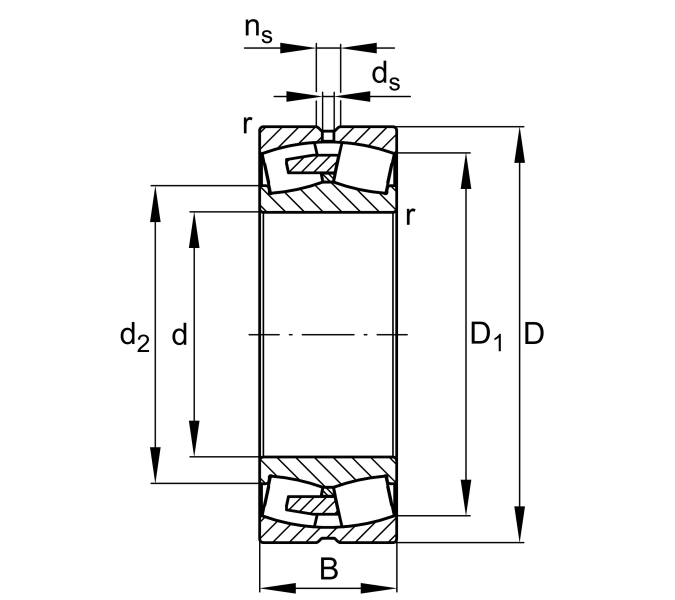

Mounting dimensions
da min
380 mm
Minimum diameter shaft shoulder
Da max
580 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
