FAG 232/670-B-MB
Spherical Roller Bearings

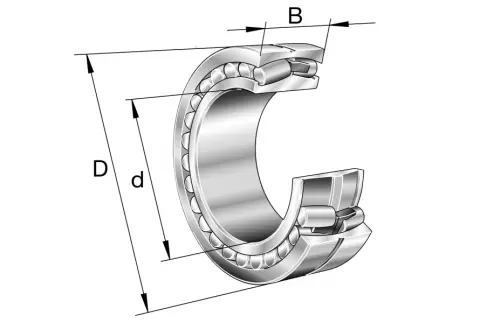

Spherical roller bearing 232..-B-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

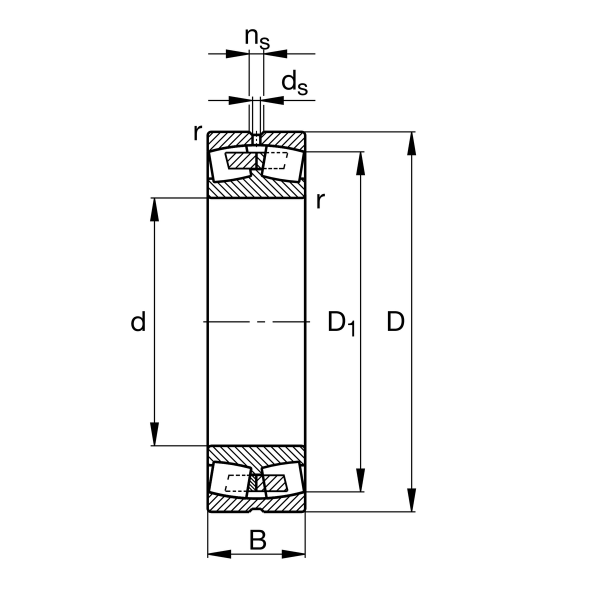

Main Dimensions & Performance Data
d
670 mm
Bore diameter
D
1,220 mm
Outside diameter
B
438 mm
Width
Cr
16,000,000 N
Basic dynamic load rating, radial
C0r
32,000,000 N
Basic static load rating, radial
Cur
2,170,000 N
Fatigue load limit, radial
CG
430 1/min
Limiting speed
nϑr
165 1/min
Reference speed
≈m
2,293.4 kg
Weight
Mounting dimensions
da min
718 mm
Minimum diameter shaft shoulder
Da max
1,172 mm
Maximum diameter of housing shoulder
ra max
10 mm
Maximum recess radius
