FAG 232/710-B-K-MB-C3
Spherical Roller Bearings

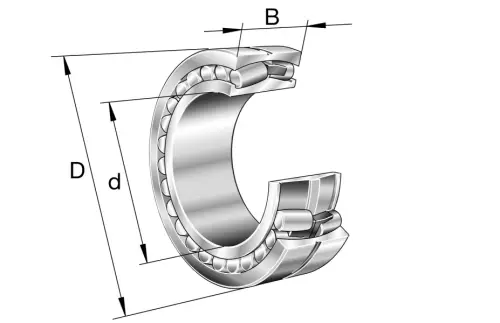

Spherical roller bearing 232..-B-K-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

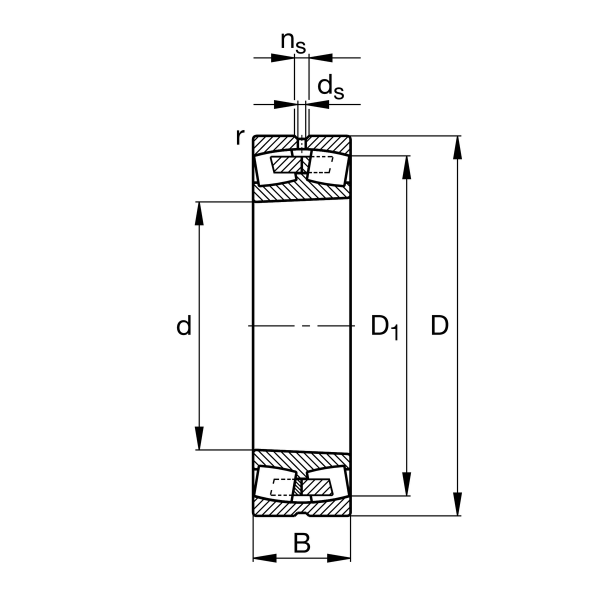

Main Dimensions & Performance Data
d
710 mm
Bore diameter
D
1,280 mm
Outside diameter
B
450 mm
Width
Cr
17,200,000 N
Basic dynamic load rating, radial
C0r
35,500,000 N
Basic static load rating, radial
Cur
2,370,000 N
Fatigue load limit, radial
CG
405 1/min
Limiting speed
nϑr
149 1/min
Reference speed
≈m
2,523 kg
Weight

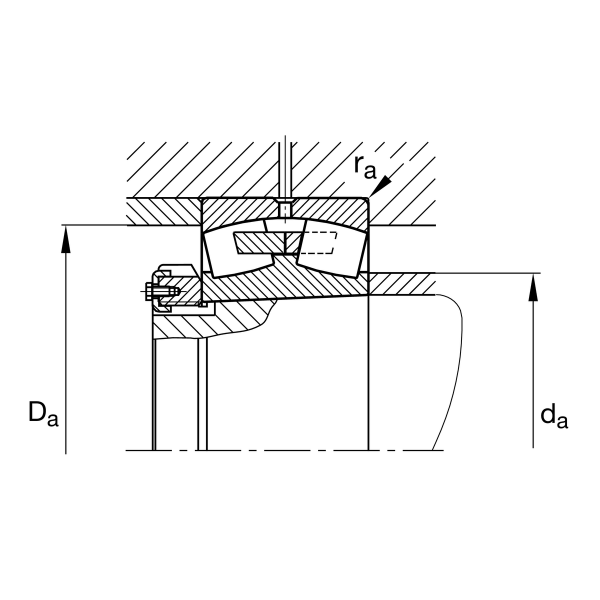

Mounting dimensions
da min
758 mm
Minimum diameter shaft shoulder
Da max
1,232 mm
Maximum diameter of housing shoulder
ra max
10 mm
Maximum recess radius
