FAG 23218-E1-XL-K-TVPB-C3
Spherical roller bearings 232..-E1-K, main dimensions to DIN 635-2, with tapered bore, taper 1:12
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

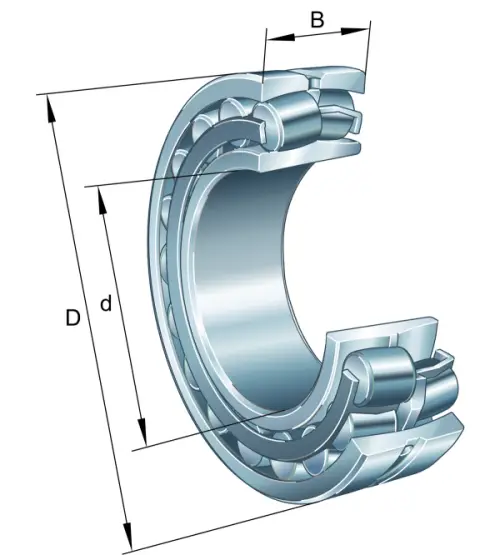

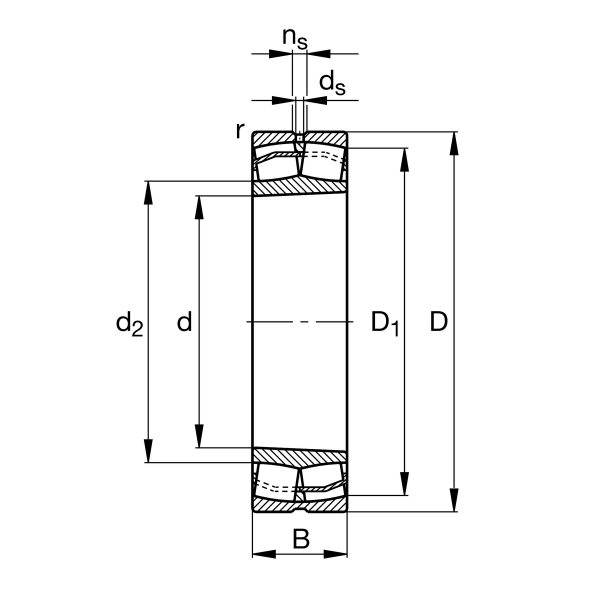

Main Dimensions & Performance Data
d
90 mm
Bore diameter
D
160 mm
Outside diameter
B
52.4 mm
Width
Cr
445,000 N
Basic dynamic load rating, radial
C0r
520,000 N
Basic static load rating, radial
Cur
50,000 N
Fatigue load limit, radial
CG
4,250 1/min
Limiting speed
nϑr
2,650 1/min
Reference speed
≈m
4.106 kg
Weight
Mounting dimensions
da min
101 mm
Minimum diameter shaft shoulder
Da max
149 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
Ba min
18 mm
Minimum cavity width of the sleeve
da max
104 mm
Maximum diameter of shaft shoulder
db min
100 mm
Minimum cavity diameter of the sleeve
