FAG 23256-BEA-XL-K-MB1-C3
Spherical roller bearing 232..-BEA-XL-K-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
280 mm
Bore diameter
D
500 mm
Outside diameter
B
176 mm
Width
Cr
3,550,000 N
Basic dynamic load rating, radial
C0r
5,200,000 N
Basic static load rating, radial
Cur
395,000 N
Fatigue load limit, radial
CG
1,280 1/min
Limiting speed
nϑr
630 1/min
Reference speed
≈m
142.855 kg
Weight

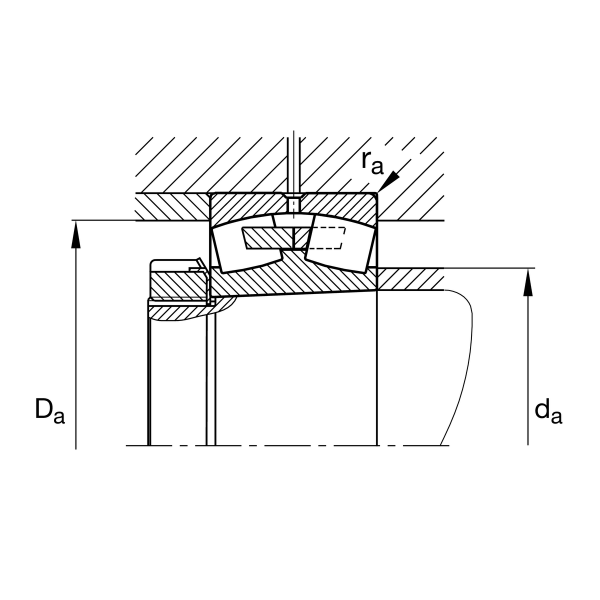

Mounting dimensions
da min
300 mm
Minimum diameter shaft shoulder
Da max
480 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
da max
329 mm
Maximum diameter of shaft shoulder
db min
299 mm
Minimum cavity diameter of the sleeve
Ba min
11 mm
Minimum cavity width of the sleeve
