FAG 23264-BEA-XL-MB1

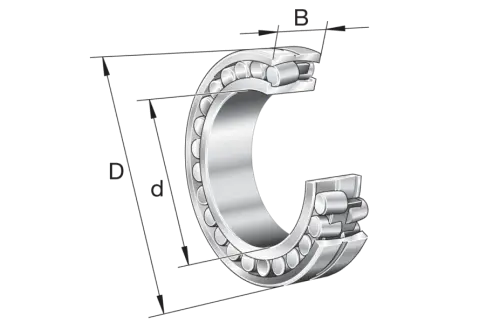

Spherical roller bearing 232..-BEA-XL-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

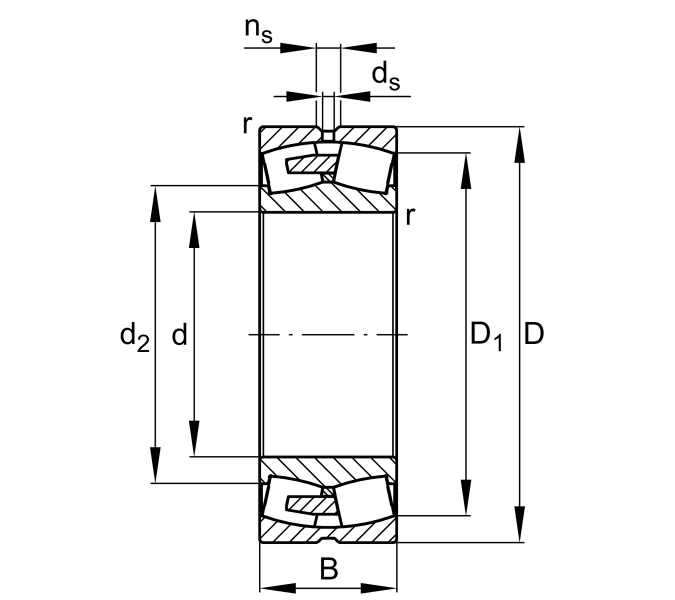

Main Dimensions & Performance Data
d
320 mm
Bore diameter
D
580 mm
Outside diameter
B
208 mm
Width
Cr
4,650,000 N
Basic dynamic load rating, radial
C0r
7,000,000 N
Basic static load rating, radial
Cur
510,000 N
Fatigue load limit, radial
CG
1,060 1/min
Limiting speed
nϑr
510 1/min
Reference speed
≈m
238 kg
Weight
Mounting dimensions
da min
340 mm
Minimum diameter shaft shoulder
Da max
560 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
