FAG 234448-M-SP
Axial-Super Precision Bearings
Axial angular contact ball bearings 2344, double direction, separable, restricted tolerances
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

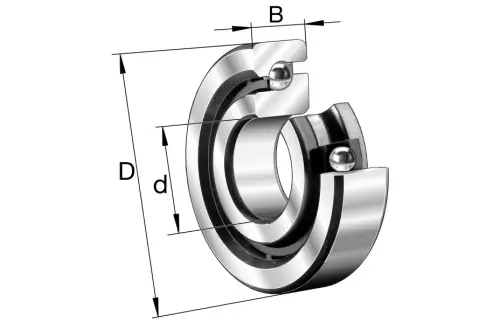

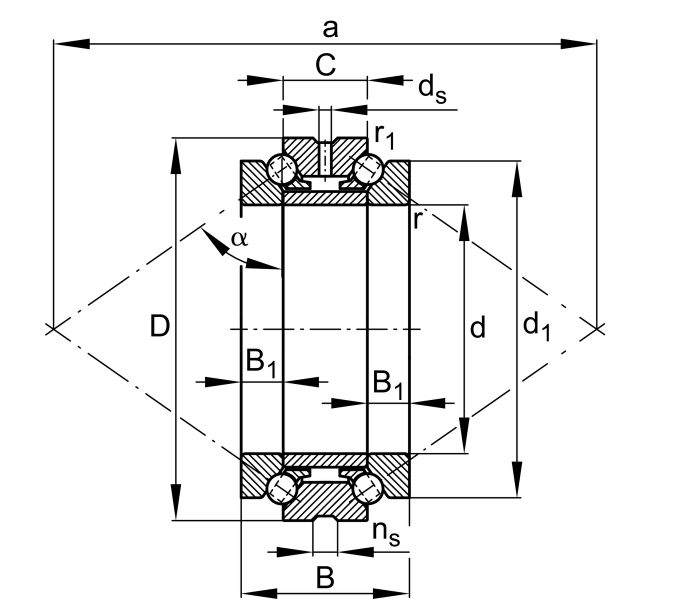

Main Dimensions & Performance Data
d
240 mm
Bore diameter
D
360 mm
Outside diameter
B
144 mm
Width
C
72 mm
Width, outer ring
Ca
350,000 N
Basic dynamic load rating, axial
C0a
1,420,000 N
Basic static load rating, axial
Cua
75,000 N
Fatigue load limit, axial
nG Grease
1,500 1/min
Limiting speed for grease lubrication
nG Oil
2,000 1/min
Limiting speed for oil lubrication
≈m
46.2 kg
Weight

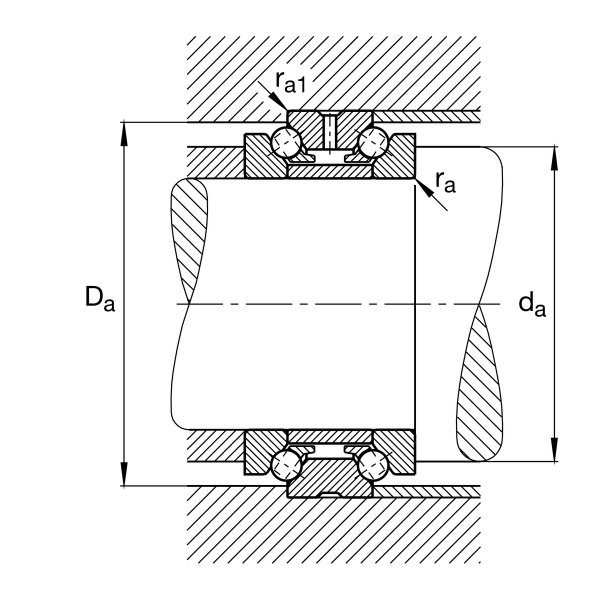

Mounting dimensions
da
289 mm
Diameter shaft shoulder
da
h12
Diameter shaft shoulder clearance
Da
338 mm
Shoulder diameter outer ring
Da
H12
Shoulder diameter outer ring clearance
ra max
3 mm
Maximum recess radius
ra1 max
1 mm
Maximum recess radius
α
60 u00B0
Contact angle
a
601 mm
Distance between the apexes of the pressure cones
