FAG 238/630-MB

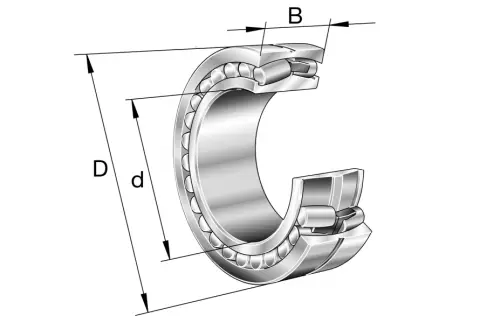

Spherical roller bearing 238..-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

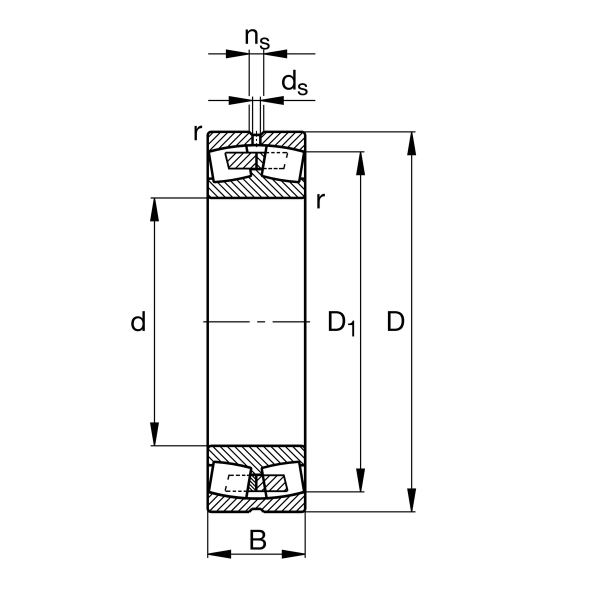

Main Dimensions & Performance Data
d
630 mm
Bore diameter
D
780 mm
Outside diameter
B
112 mm
Width
Cr
2,270,000 N
Basic dynamic load rating, radial
C0r
6,400,000 N
Basic static load rating, radial
Cur
465,000 N
Fatigue load limit, radial
CG
860 1/min
Limiting speed
nϑr
410 1/min
Reference speed
≈m
121.5 kg
Weight
Mounting dimensions
da min
645 mm
Minimum diameter shaft shoulder
Da max
765 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
