FAG 238/850-MB

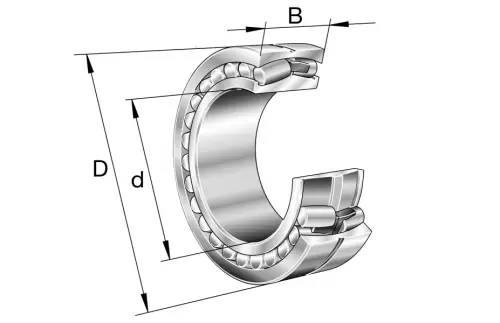

Spherical roller bearing 238..-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

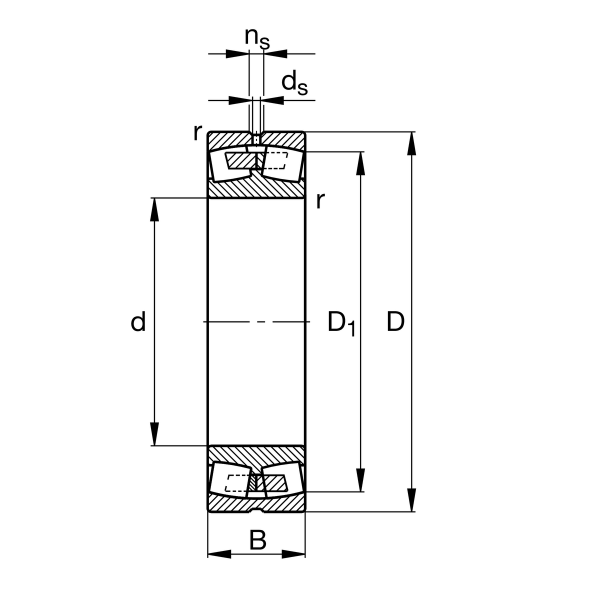

Main Dimensions & Performance Data
d
850 mm
Bore diameter
D
1,030 mm
Outside diameter
B
136 mm
Width
Cr
3,500,000 N
Basic dynamic load rating, radial
C0r
10,600,000 N
Basic static load rating, radial
Cur
730,000 N
Fatigue load limit, radial
CG
620 1/min
Limiting speed
nϑr
285 1/min
Reference speed
≈m
234 kg
Weight
Mounting dimensions
da min
868 mm
Minimum diameter shaft shoulder
Da max
1,012 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
