FAG 23896-MB
Spherical roller bearing 238..-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

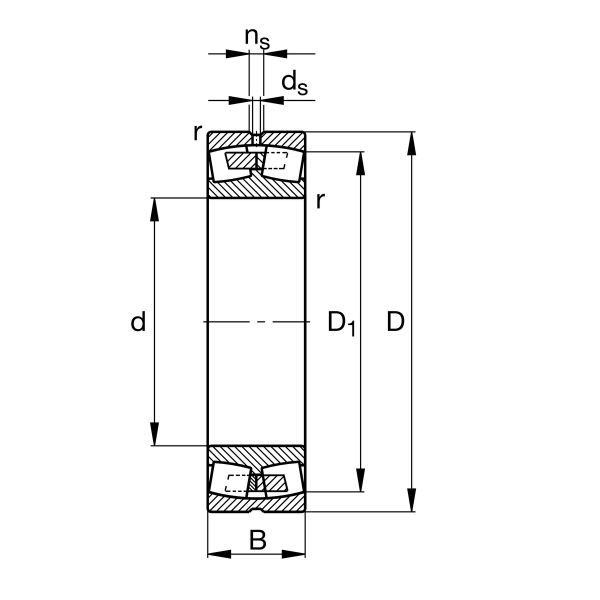

Main Dimensions & Performance Data
d
480 mm
Bore diameter
D
600 mm
Outside diameter
B
90 mm
Width
Cr
1,470,000 N
Basic dynamic load rating, radial
C0r
3,850,000 N
Basic static load rating, radial
Cur
255,000 N
Fatigue load limit, radial
CG
1,180 1/min
Limiting speed
nϑr
580 1/min
Reference speed
≈m
59.5 kg
Weight
Mounting dimensions
da min
492.4 mm
Minimum diameter shaft shoulder
Da max
587.6 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
