FAG 239/710-K-MB-C2
Spherical Roller Bearings
Spherical roller bearing 239..-K-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

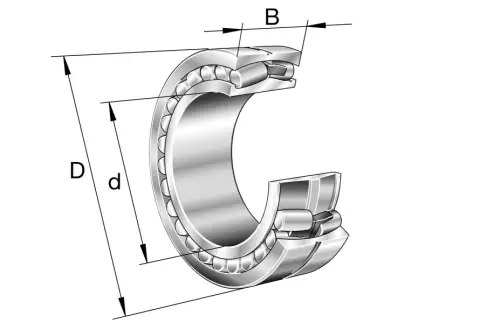

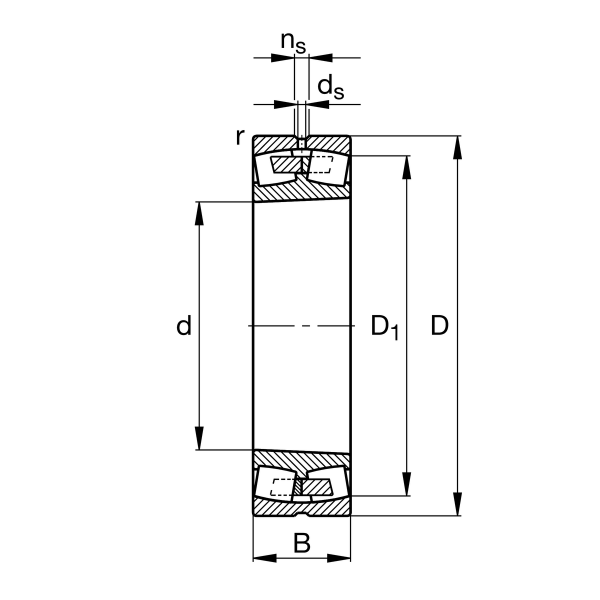

Main Dimensions & Performance Data
d
710 mm
Bore diameter
D
950 mm
Outside diameter
B
180 mm
Width
Cr
4,800,000 N
Basic dynamic load rating, radial
C0r
12,100,000 N
Basic static load rating, radial
Cur
740,000 N
Fatigue load limit, radial
CG
670 1/min
Limiting speed
nϑr
350 1/min
Reference speed
≈m
356.5 kg
Weight

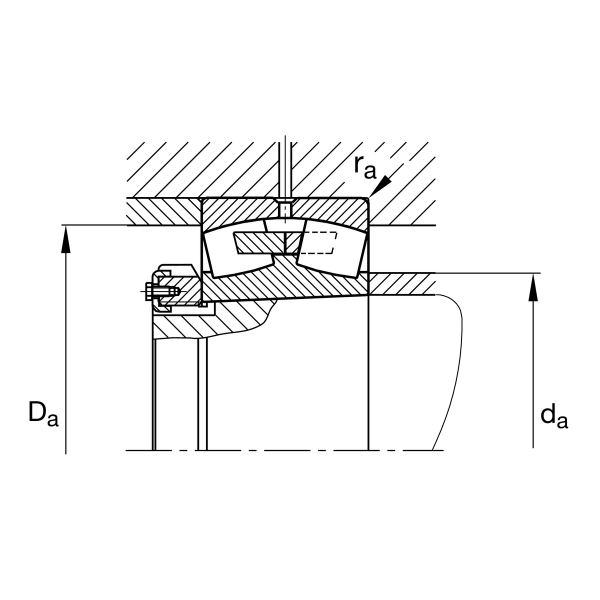

Mounting dimensions
da min
733 mm
Minimum diameter shaft shoulder
Da max
927 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
da max
770 mm
Maximum diameter of shaft shoulder
db min
730 mm
Minimum cavity diameter of the sleeve
Ba min
22 mm
Minimum cavity width of the sleeve
