FAG 239/750-K-MB-C3

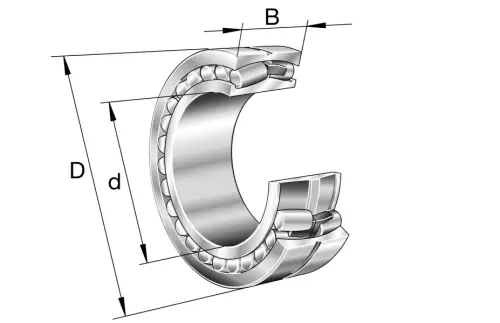

Spherical roller bearing 239..-K-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

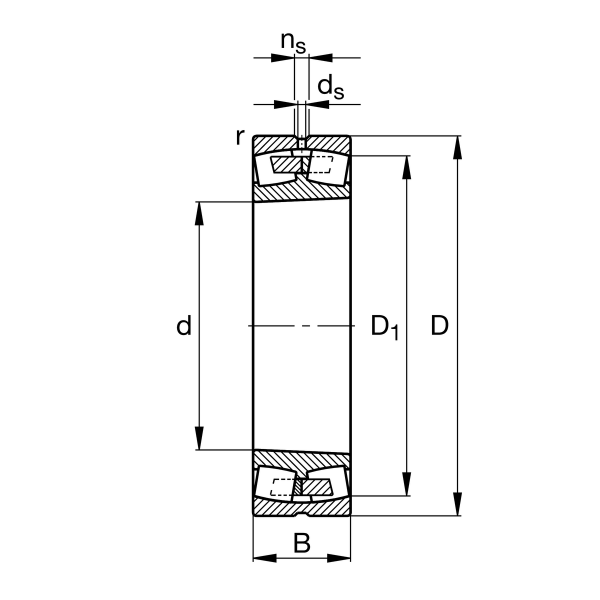

Main Dimensions & Performance Data
d
750 mm
Bore diameter
D
1,000 mm
Outside diameter
B
185 mm
Width
Cr
5,200,000 N
Basic dynamic load rating, radial
C0r
13,000,000 N
Basic static load rating, radial
Cur
810,000 N
Fatigue load limit, radial
CG
640 1/min
Limiting speed
nϑr
325 1/min
Reference speed
≈m
401 kg
Weight

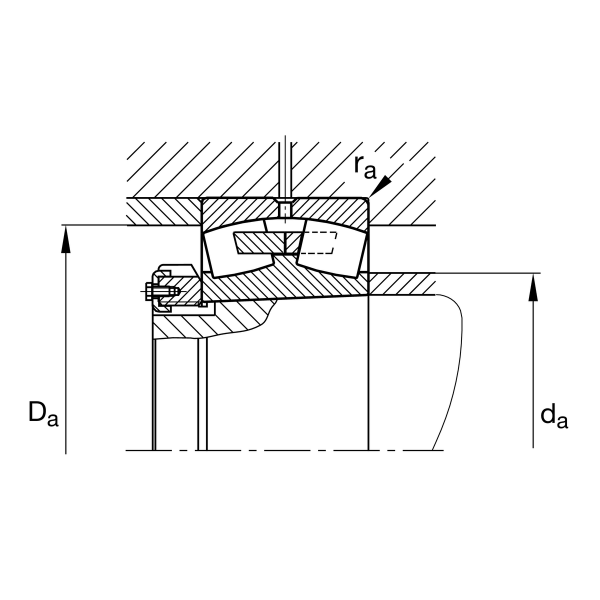

Mounting dimensions
da min
773 mm
Minimum diameter shaft shoulder
Da max
977 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
da max
810 mm
Maximum diameter of shaft shoulder
db min
771 mm
Minimum cavity diameter of the sleeve
Ba min
23 mm
Minimum cavity width of the sleeve
