FAG 239/900-K-MB
Spherical Roller Bearings
Spherical roller bearing 239..-K-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

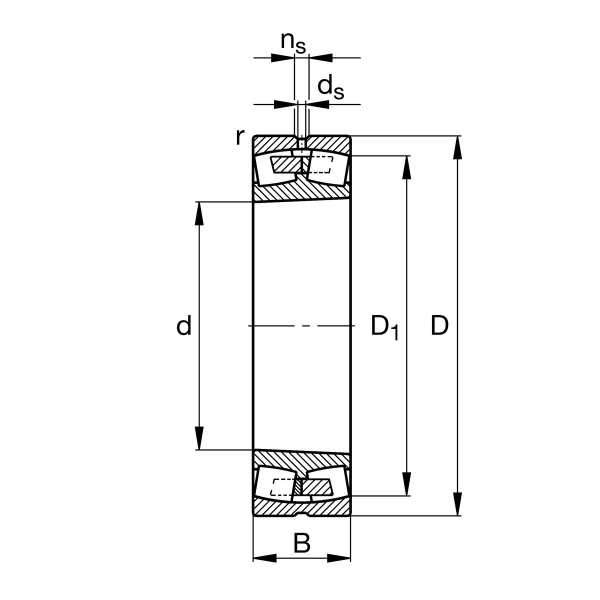

Main Dimensions & Performance Data
d
900 mm
Bore diameter
D
1,180 mm
Outside diameter
B
206 mm
Width
Cr
6,500,000 N
Basic dynamic load rating, radial
C0r
17,200,000 N
Basic static load rating, radial
Cur
1,030,000 N
Fatigue load limit, radial
CG
520 1/min
Limiting speed
nϑr
260 1/min
Reference speed
≈m
598 kg
Weight

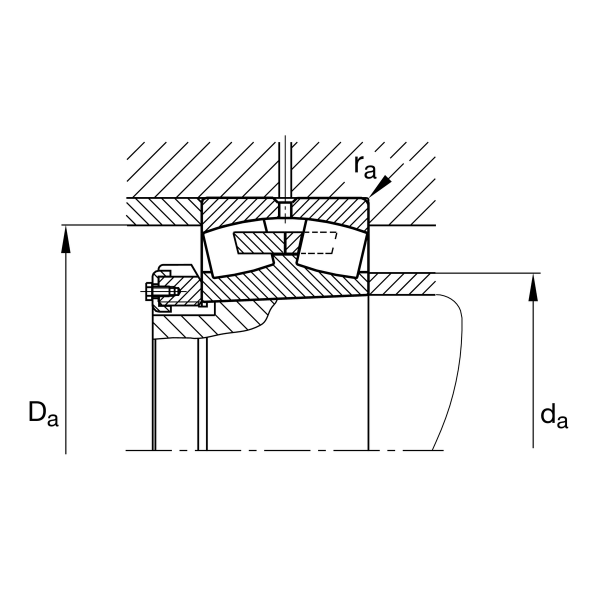

Mounting dimensions
da min
923 mm
Minimum diameter shaft shoulder
Da max
1,157 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
da max
972 mm
Maximum diameter of shaft shoulder
db min
923 mm
Minimum cavity diameter of the sleeve
Ba min
27 mm
Minimum cavity width of the sleeve
