FAG 23992-B-MB
Spherical roller bearing 239..-B-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

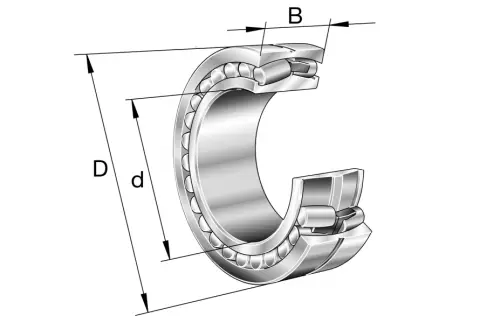

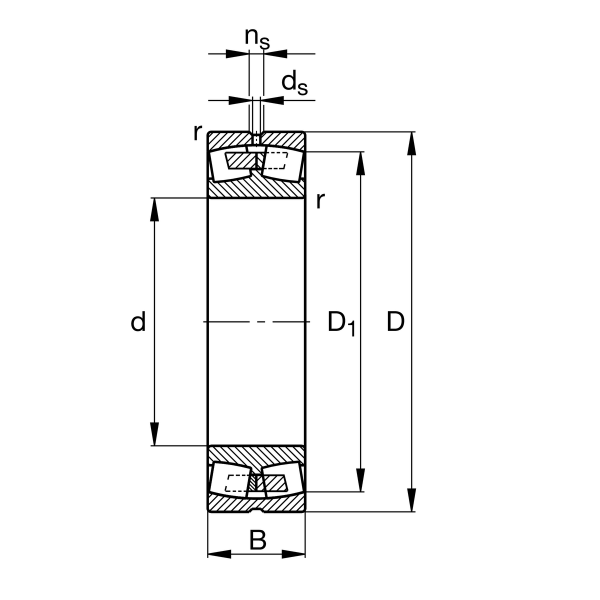

Main Dimensions & Performance Data
d
460 mm
Bore diameter
D
620 mm
Outside diameter
B
118 mm
Width
Cr
2,270,000 N
Basic dynamic load rating, radial
C0r
5,400,000 N
Basic static load rating, radial
Cur
380,000 N
Fatigue load limit, radial
CG
1,080 1/min
Limiting speed
nϑr
590 1/min
Reference speed
≈m
104 kg
Weight

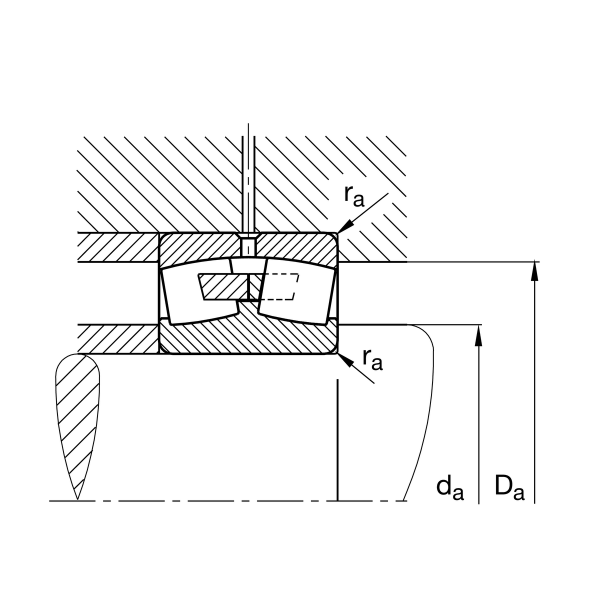

Mounting dimensions
da min
474.6 mm
Minimum diameter shaft shoulder
Da max
605.4 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
