FAG 240/530-BEA-XL-MB1
Spherical roller bearing 240..-BEA-XL-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

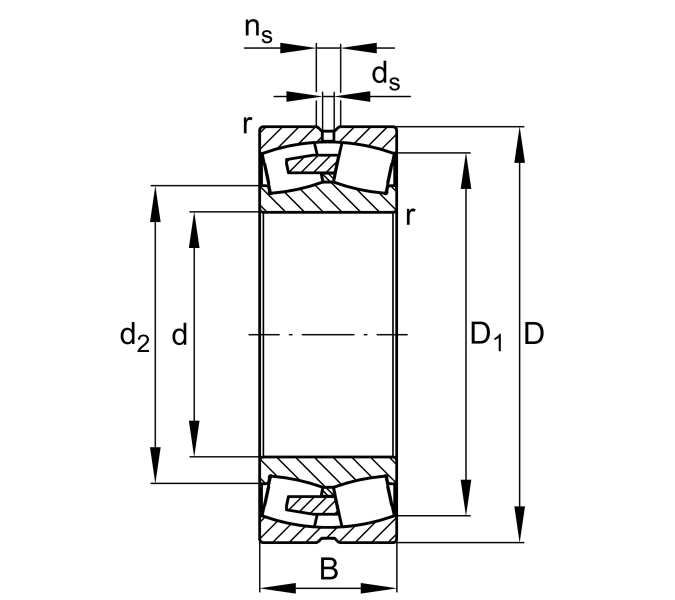

Main Dimensions & Performance Data
d
530 mm
Bore diameter
D
780 mm
Outside diameter
B
250 mm
Width
Cr
7,000,000 N
Basic dynamic load rating, radial
C0r
13,500,000 N
Basic static load rating, radial
Cur
1,050,000 N
Fatigue load limit, radial
CG
670 1/min
Limiting speed
nϑr
335 1/min
Reference speed
≈m
402 kg
Weight
Mounting dimensions
da min
553 mm
Minimum diameter shaft shoulder
Da max
757 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
