FAG 240/710-B-K30-MB-C3

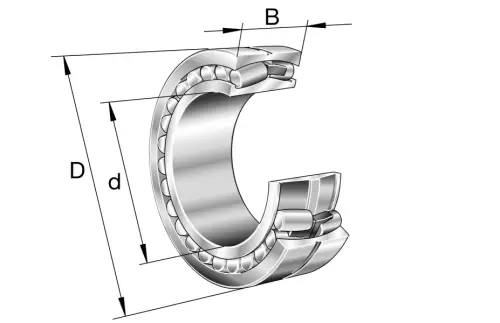

Spherical Roller Bearings
Spherical roller bearing 240..-B-K30-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

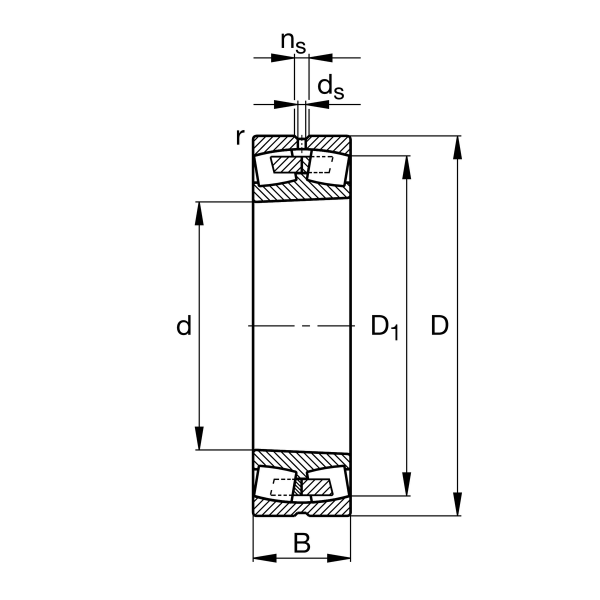

Main Dimensions & Performance Data
d
710 mm
Bore diameter
D
1,030 mm
Outside diameter
B
315 mm
Width
Cr
9,600,000 N
Basic dynamic load rating, radial
C0r
23,000,000 N
Basic static load rating, radial
Cur
1,590,000 N
Fatigue load limit, radial
CG
480 1/min
Limiting speed
nϑr
223 1/min
Reference speed
≈m
869.5 kg
Weight

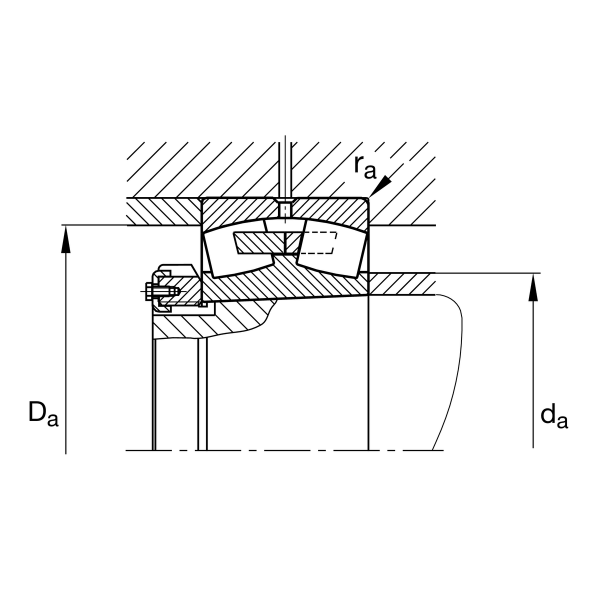

Mounting dimensions
da min
738 mm
Minimum diameter shaft shoulder
Da max
1,002 mm
Maximum diameter of housing shoulder
ra max
6 mm
Maximum recess radius
