FAG 24026-BE-XL
Spherical roller bearing 240..-BE-XL, symmetric with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

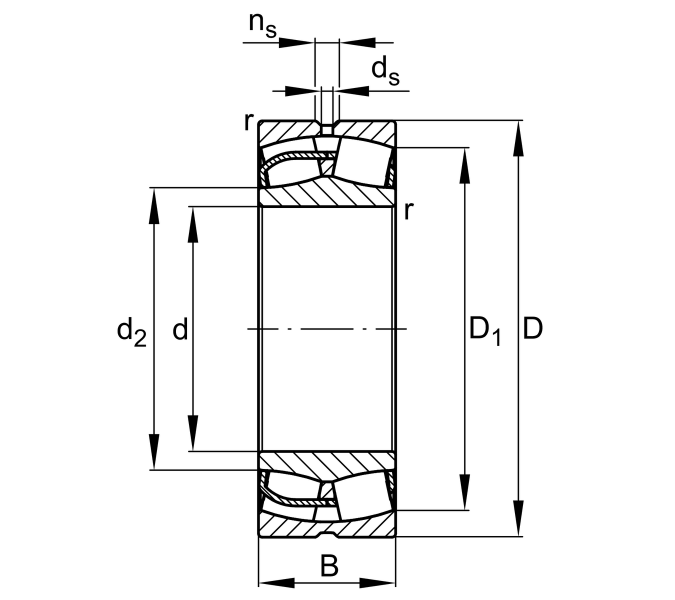

Main Dimensions & Performance Data
d
130 mm
Bore diameter
D
200 mm
Outside diameter
B
69 mm
Width
Cr
570,000 N
Basic dynamic load rating, radial
C0r
860,000 N
Basic static load rating, radial
Cur
103,000 N
Fatigue load limit, radial
CG
3,100 1/min
Limiting speed
nϑr
2,130 1/min
Reference speed
≈m
7.769 kg
Weight
Mounting dimensions
da min
138.8 mm
Minimum diameter shaft shoulder
Da max
191.2 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum recess radius
