FAG 24030-BE-XL
Spherical roller bearing 240..-BE-XL, symmetric with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

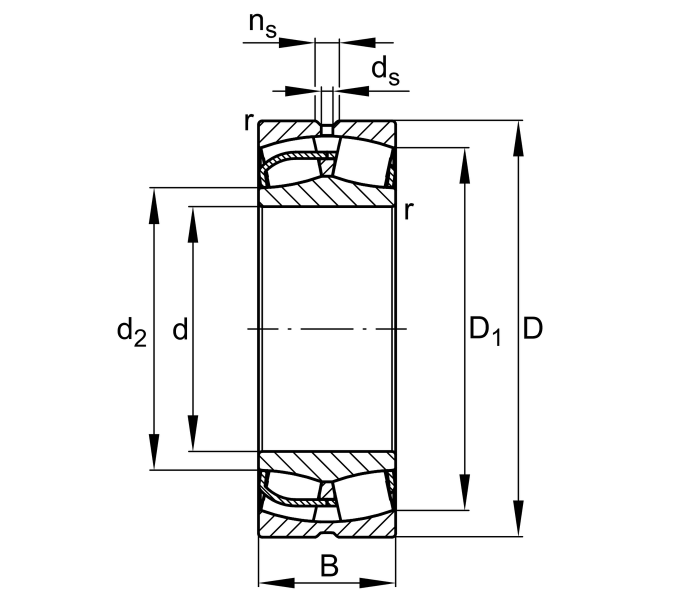

Main Dimensions & Performance Data
d
150 mm
Bore diameter
D
225 mm
Outside diameter
B
75 mm
Width
Cr
680,000 N
Basic dynamic load rating, radial
C0r
1,090,000 N
Basic static load rating, radial
Cur
125,000 N
Fatigue load limit, radial
CG
2,750 1/min
Limiting speed
nϑr
1,790 1/min
Reference speed
≈m
10.334 kg
Weight
Mounting dimensions
da min
160.2 mm
Minimum diameter shaft shoulder
Da max
214.8 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
