FAG 24032-BE-XL
Spherical roller bearing 240..-BE-XL, symmetric with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
160 mm
Bore diameter
D
240 mm
Outside diameter
B
80 mm
Width
Cr
770,000 N
Basic dynamic load rating, radial
C0r
1,240,000 N
Basic static load rating, radial
Cur
140,000 N
Fatigue load limit, radial
CG
2,550 1/min
Limiting speed
nϑr
1,660 1/min
Reference speed
≈m
12.67 kg
Weight

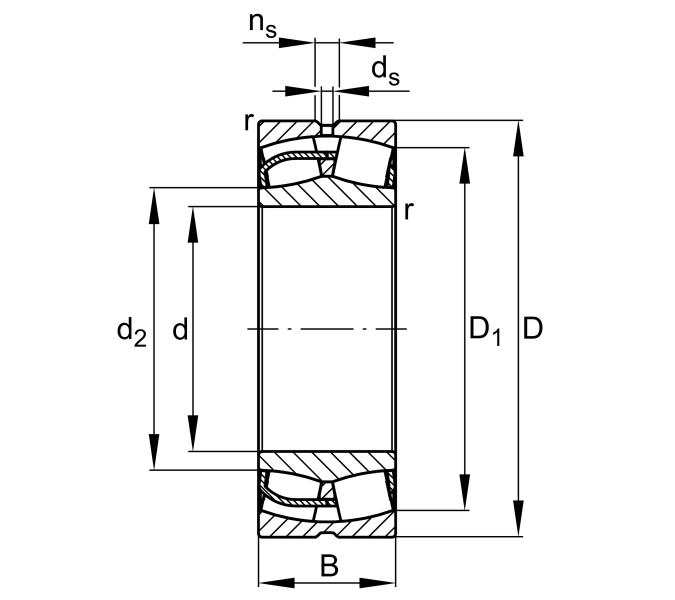

Mounting dimensions
da min
170.2 mm
Minimum diameter shaft shoulder
Da max
229.8 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
