FAG 24040-BE-XL
Spherical roller bearing 240..-BE-XL, symmetric with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

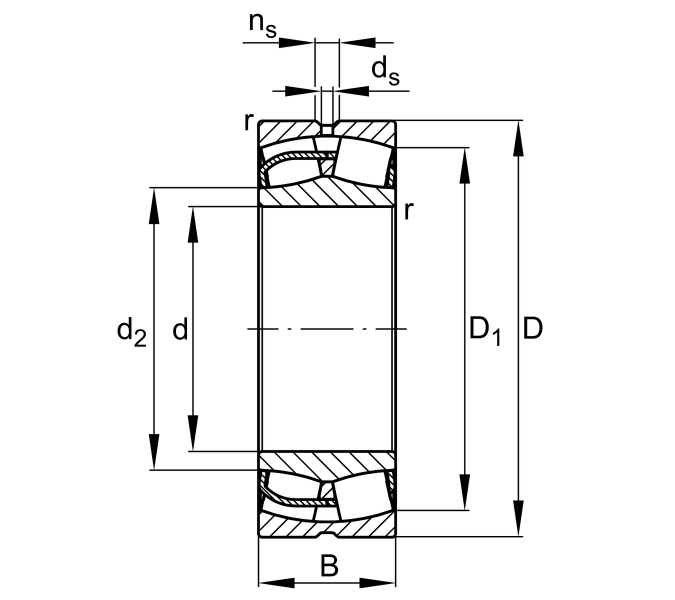

Main Dimensions & Performance Data
d
200 mm
Bore diameter
D
310 mm
Outside diameter
B
109 mm
Width
Cr
1,350,000 N
Basic dynamic load rating, radial
C0r
2,150,000 N
Basic static load rating, radial
Cur
221,000 N
Fatigue load limit, radial
CG
2,010 1/min
Limiting speed
nϑr
1,240 1/min
Reference speed
≈m
29.647 kg
Weight
Mounting dimensions
da min
210.2 mm
Minimum diameter shaft shoulder
Da max
299.8 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
