FAG 24048-BE-XL
Spherical roller bearing 240..-BE-XL, symmetric with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
240 mm
Bore diameter
D
360 mm
Outside diameter
B
118 mm
Width
Cr
1,670,000 N
Basic dynamic load rating, radial
C0r
2,850,000 N
Basic static load rating, radial
Cur
280,000 N
Fatigue load limit, radial
CG
1,710 1/min
Limiting speed
nϑr
980 1/min
Reference speed
≈m
41.61 kg
Weight

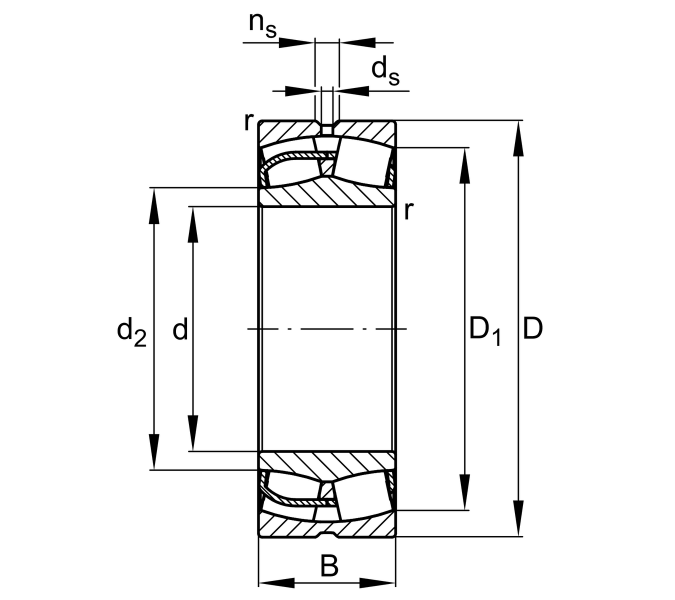

Mounting dimensions
da min
252.4 mm
Minimum diameter shaft shoulder
Da max
347.6 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
