FAG 24060-BE-XL
Spherical roller bearing 240..-BE-XL, symmetric with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

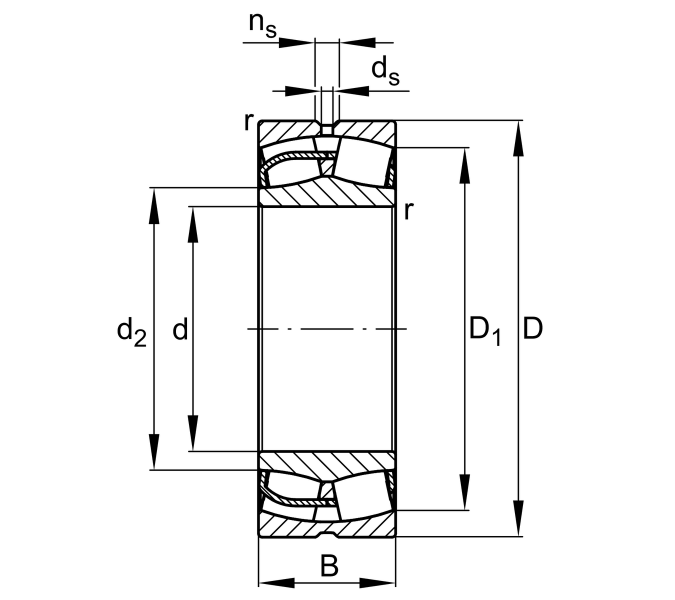

Main Dimensions & Performance Data
d
300 mm
Bore diameter
D
460 mm
Outside diameter
B
160 mm
Width
Cr
2,850,000 N
Basic dynamic load rating, radial
C0r
4,900,000 N
Basic static load rating, radial
Cur
435,000 N
Fatigue load limit, radial
CG
1,250 1/min
Limiting speed
nϑr
720 1/min
Reference speed
≈m
95.705 kg
Weight
Mounting dimensions
da min
314.6 mm
Minimum diameter shaft shoulder
Da max
445.4 mm
Maximum diameter of housing shoulder
ra max
3 mm
Maximum recess radius
