FAG 24068-BEA-XL-MB1
Spherical roller bearing 240..-BEA-XL-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
340 mm
Bore diameter
D
520 mm
Outside diameter
B
180 mm
Width
Cr
3,550,000 N
Basic dynamic load rating, radial
C0r
6,200,000 N
Basic static load rating, radial
Cur
530,000 N
Fatigue load limit, radial
CG
1,080 1/min
Limiting speed
nϑr
610 1/min
Reference speed
≈m
138.44 kg
Weight

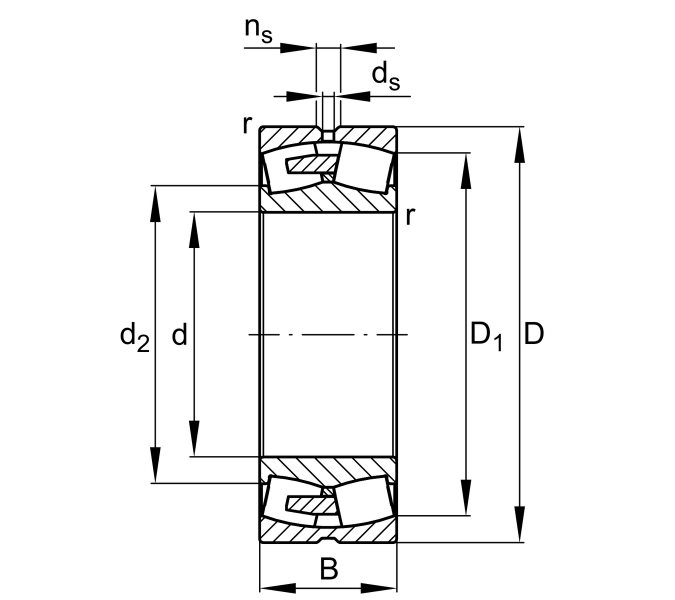

Mounting dimensions
da min
358 mm
Minimum diameter shaft shoulder
Da max
502 mm
Maximum diameter of housing shoulder
ra max
4 mm
Maximum recess radius
