FAG 24088-BEA-XL-MB1
Spherical Roller Bearings

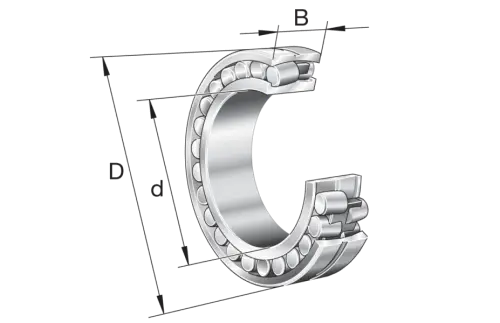

Spherical roller bearing 240..-BEA-XL-MB1, symmetric 2 outer ribs with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
440 mm
Bore diameter
D
650 mm
Outside diameter
B
212 mm
Width
Cr
5,100,000 N
Basic dynamic load rating, radial
C0r
9,500,000 N
Basic static load rating, radial
Cur
780,000 N
Fatigue load limit, radial
CG
830 1/min
Limiting speed
nϑr
435 1/min
Reference speed
≈m
237.5 kg
Weight

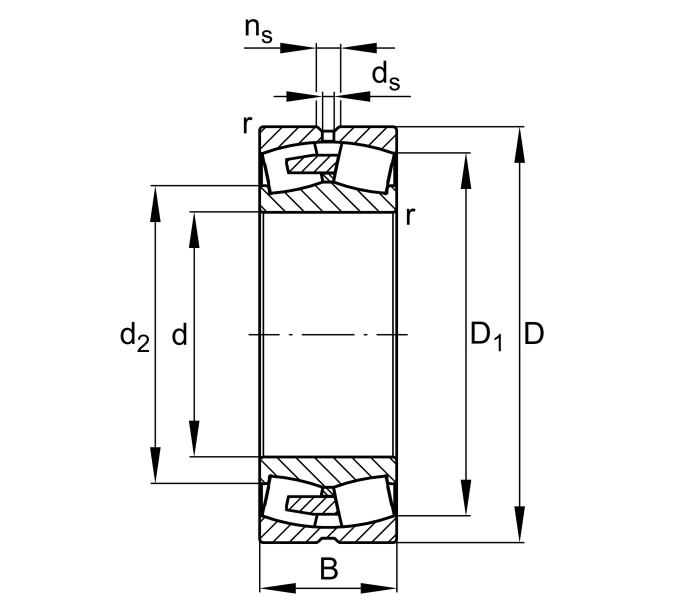

Mounting dimensions
da min
463 mm
Minimum diameter shaft shoulder
Da max
627 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
