FAG 24128-BE-XL
Spherical roller bearing 241..-BE-XL, symmetric with rib washer
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

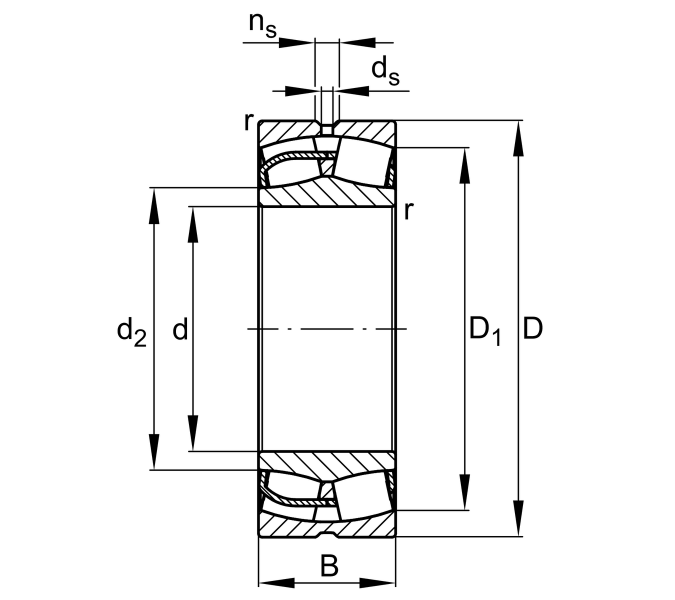

Main Dimensions & Performance Data
d
140 mm
Bore diameter
D
225 mm
Outside diameter
B
85 mm
Width
Cr
800,000 N
Basic dynamic load rating, radial
C0r
1,190,000 N
Basic static load rating, radial
Cur
127,000 N
Fatigue load limit, radial
CG
2,650 1/min
Limiting speed
nϑr
1,430 1/min
Reference speed
≈m
12.799 kg
Weight
Mounting dimensions
da min
152 mm
Minimum diameter shaft shoulder
Da max
213 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum recess radius
