FAG 24184-BE-XL-K30-C3
Spherical roller bearings 241..-BE-K30, main dimensions to DIN 635-2, with tapered bore, taper 1:30
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

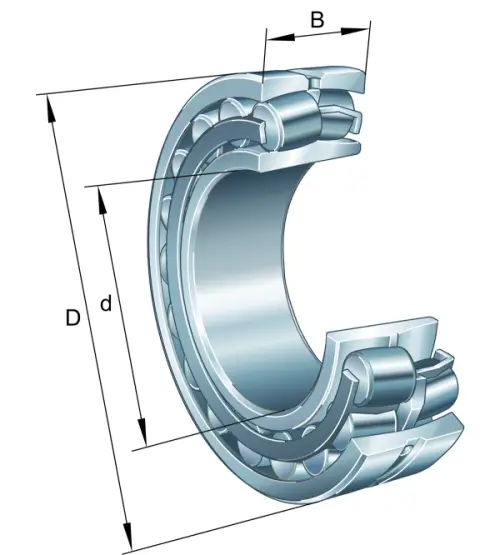

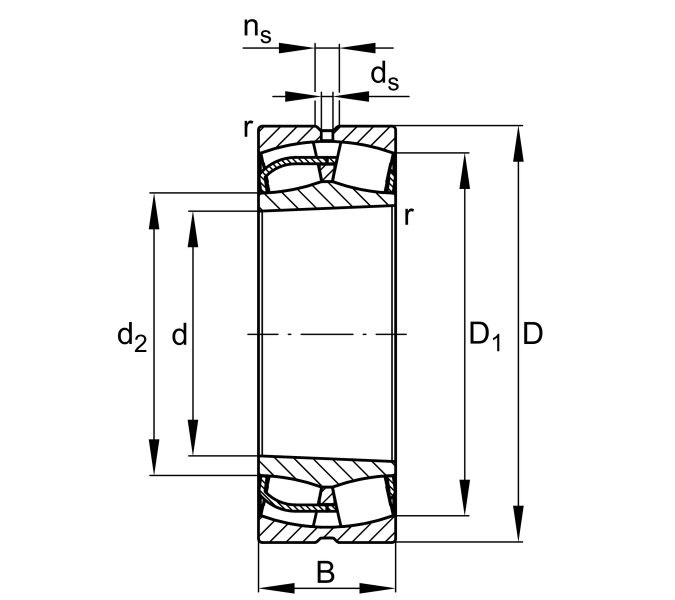

Main Dimensions & Performance Data
d
420 mm
Bore diameter
D
700 mm
Outside diameter
B
280 mm
Width
Cr
7,400,000 N
Basic dynamic load rating, radial
C0r
12,600,000 N
Basic static load rating, radial
Cur
890,000 N
Fatigue load limit, radial
CG
720 1/min
Limiting speed
nϑr
270 1/min
Reference speed
≈m
419.5 kg
Weight
Mounting dimensions
da min
446 mm
Minimum diameter shaft shoulder
Da max
674 mm
Maximum diameter of housing shoulder
ra max
5 mm
Maximum recess radius
