FAG 24892-B-MB
Spherical roller bearing 248..-B-MB, symmetric 3 ribs
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

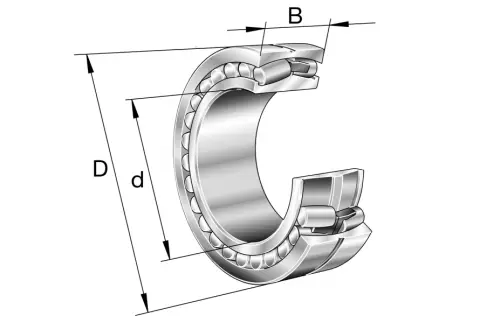

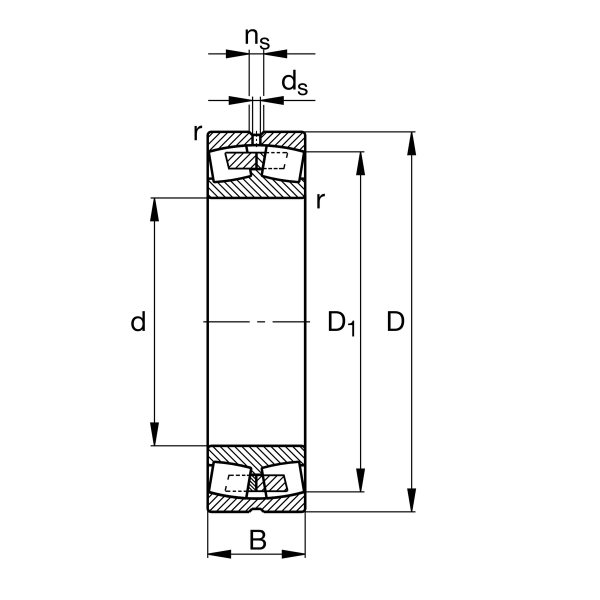

Main Dimensions & Performance Data
d
460 mm
Bore diameter
D
580 mm
Outside diameter
B
118 mm
Width
Cr
1,940,000 N
Basic dynamic load rating, radial
C0r
5,100,000 N
Basic static load rating, radial
Cur
335,000 N
Fatigue load limit, radial
CG
1,020 1/min
Limiting speed
nϑr
325 1/min
Reference speed
≈m
70.972 kg
Weight

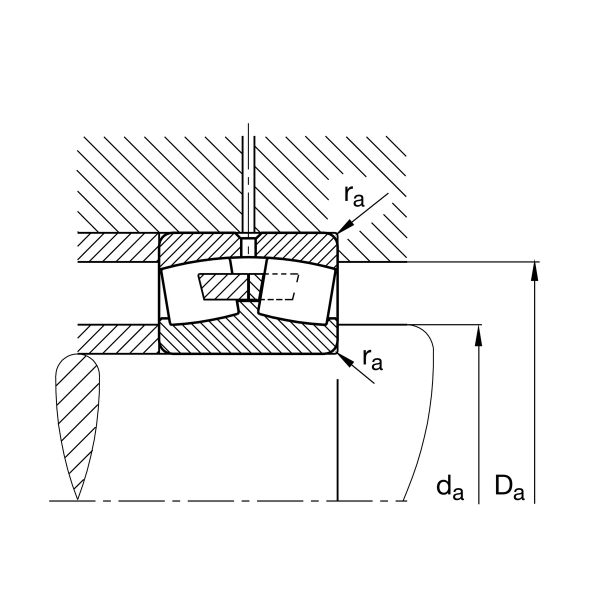

Mounting dimensions
da min
472.4 mm
Minimum diameter shaft shoulder
Da max
567.6 mm
Maximum diameter of housing shoulder
ra max
2.5 mm
Maximum recess radius
