FAG 3202-BD-XL-TVH
Angular Contact Ball Bearings

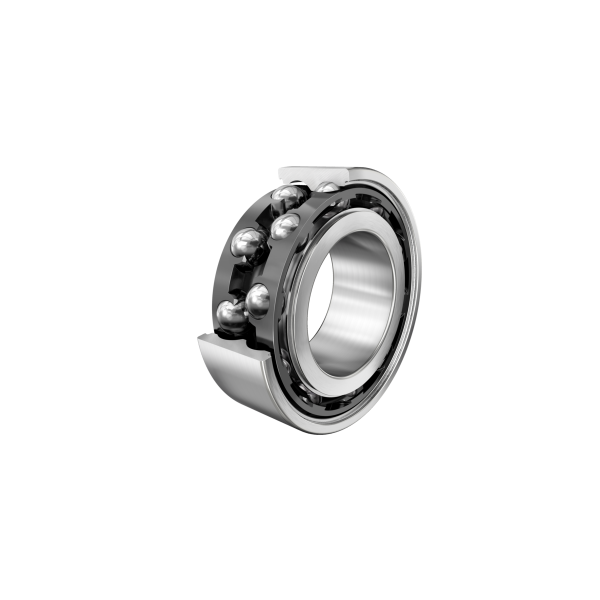

Angular contact ball bearing 32..-BD-XL-TVH, double row, X-life, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

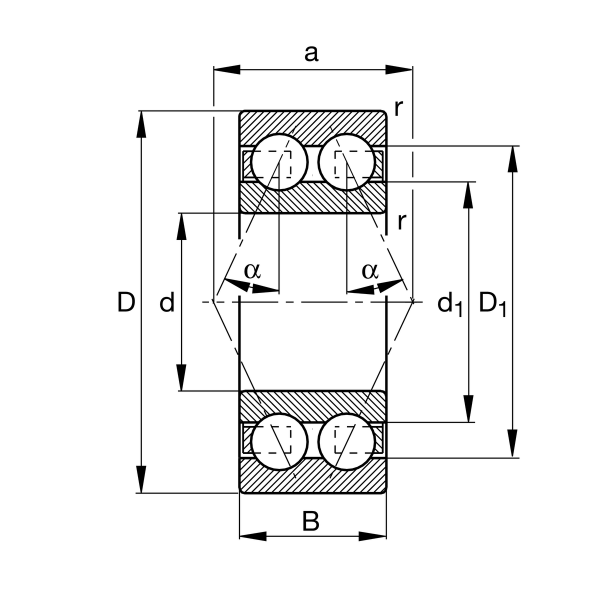

Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
35 mm
Outside diameter
B
15.9 mm
Width
Cr
12,600 N
Basic dynamic load rating, radial
C0r
7,400 N
Basic static load rating, radial
Cur
520 N
Fatigue load limit, radial
nG
22,300 1/min
Limiting speed
nϑr
18,500 1/min
Reference speed
≈m
0.062 kg
Weight

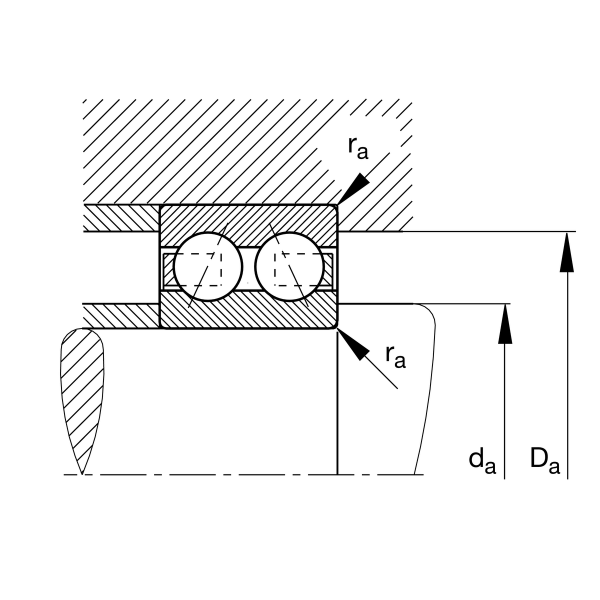

Mounting dimensions
da min
19.2 mm
Minimum diameter shaft shoulder
Da max
30.8 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum fillet radius
