FAG 3206-BD-XL
Angular Contact Ball Bearings

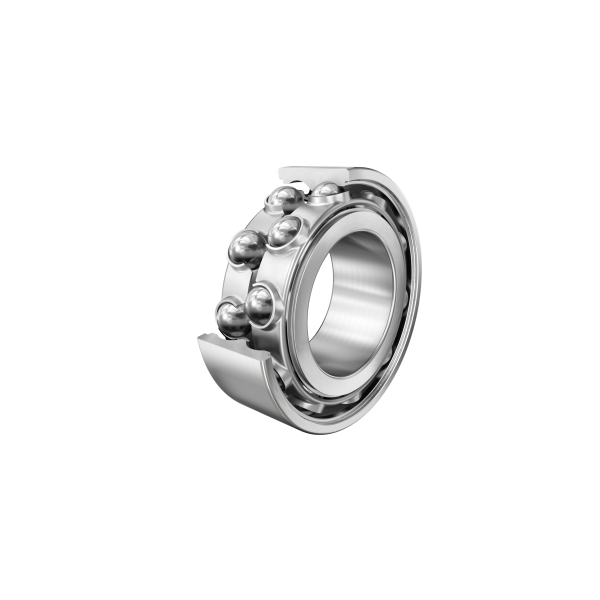

Angular contact ball bearing 32..-BD-XL, double row, X-life, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

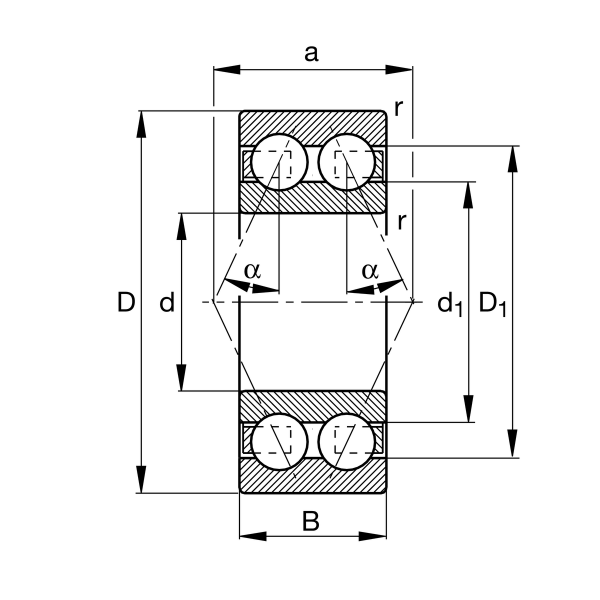

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
62 mm
Outside diameter
B
23.8 mm
Width
Cr
31,000 N
Basic dynamic load rating, radial
C0r
22,200 N
Basic static load rating, radial
Cur
1,540 N
Fatigue load limit, radial
nG
11,900 1/min
Limiting speed
nϑr
11,100 1/min
Reference speed
≈m
0.285 kg
Weight

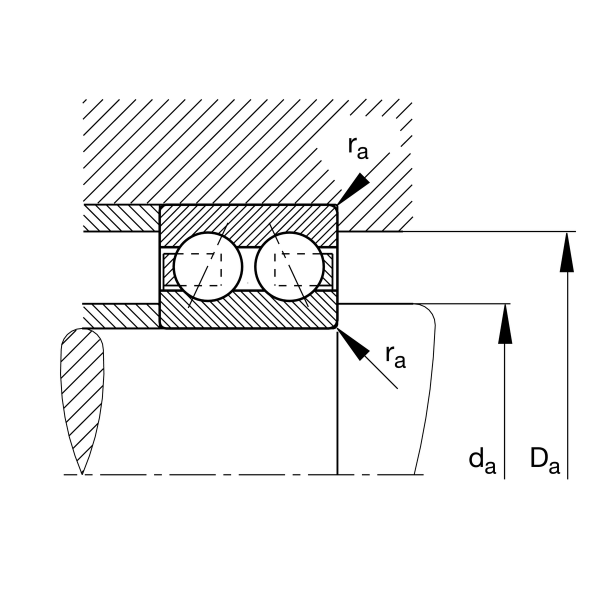

Mounting dimensions
da min
35.6 mm
Minimum diameter shaft shoulder
Da max
56.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
