FAG 3302-BD-XL-TVH
Angular Contact Ball Bearings

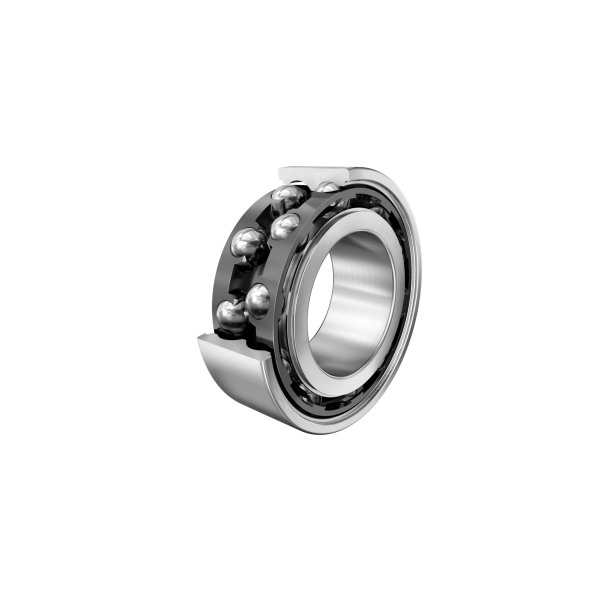

Angular contact ball bearing 33..-BD-XL-TVH, double row, X-life, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

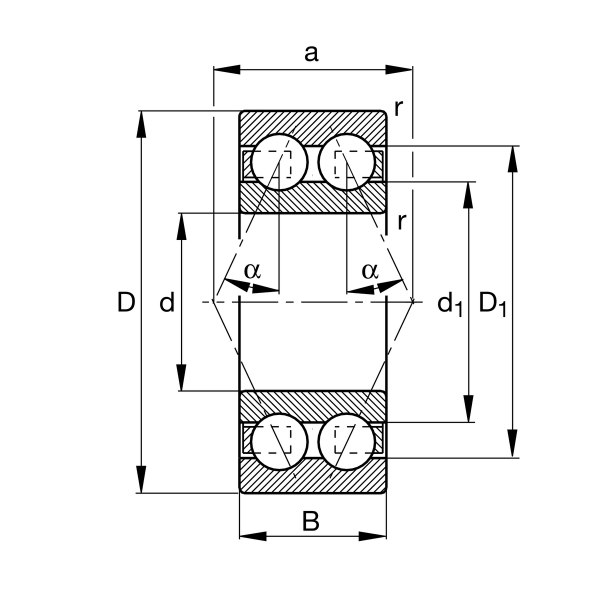

Main Dimensions & Performance Data
d
15 mm
Bore diameter
D
42 mm
Outside diameter
B
19 mm
Width
Cr
17,000 N
Basic dynamic load rating, radial
C0r
10,400 N
Basic static load rating, radial
Cur
720 N
Fatigue load limit, radial
nG
18,400 1/min
Limiting speed
nϑr
12,100 1/min
Reference speed
≈m
0.118 kg
Weight

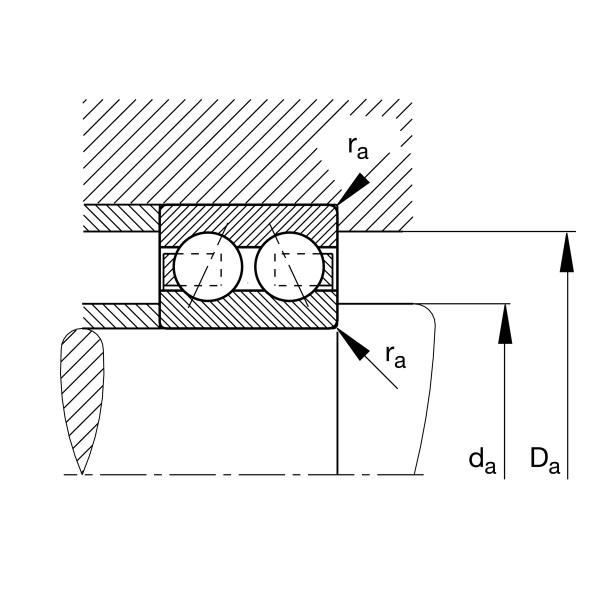

Mounting dimensions
da min
20.6 mm
Minimum diameter shaft shoulder
Da max
36.4 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
