FAG 3304-BD-XL-2HRS
Angular Contact Ball Bearings

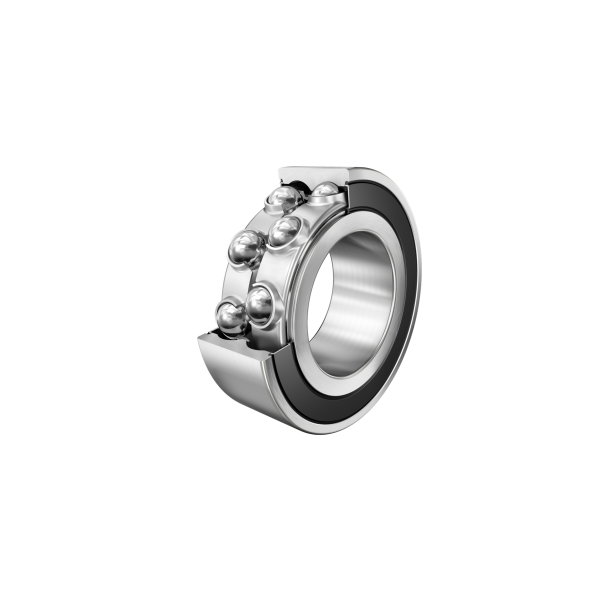

Angular contact ball bearing 33..-BD-XL-2HRS, double row, X-life, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

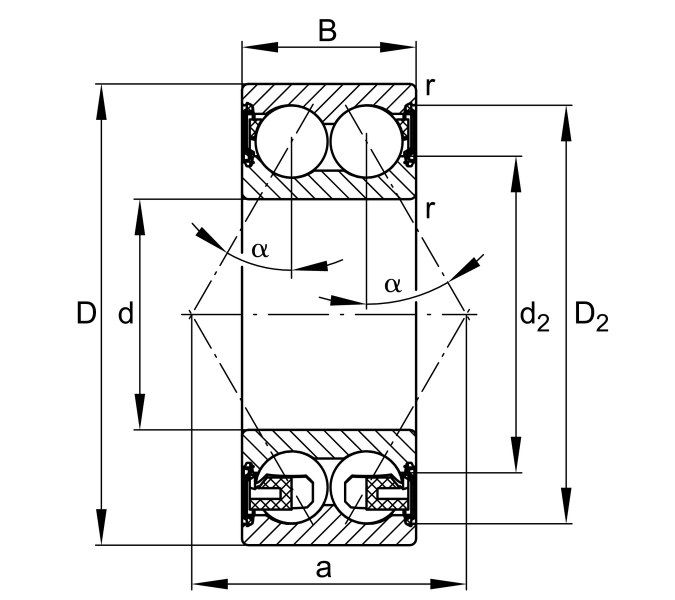

Main Dimensions & Performance Data
d
20 mm
Bore diameter
D
52 mm
Outside diameter
B
22.2 mm
Width
Cr
24,600 N
Basic dynamic load rating, radial
C0r
15,900 N
Basic static load rating, radial
Cur
1,100 N
Fatigue load limit, radial
nG
11,000 1/min
Limiting speed
≈m
0.218 kg
Weight

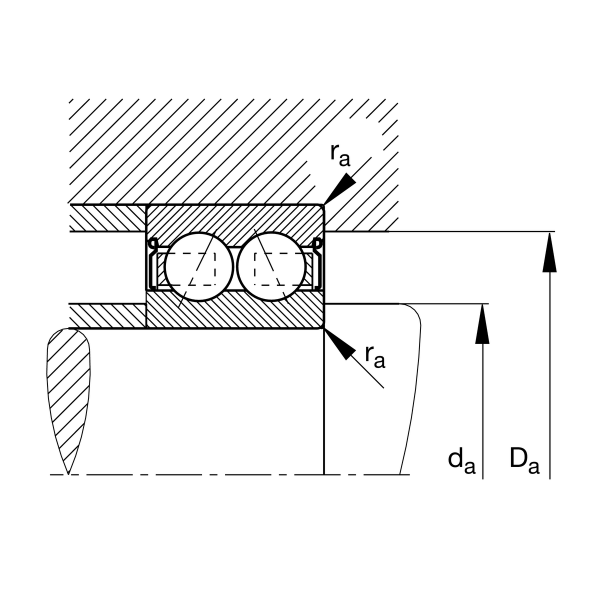

Mounting dimensions
da min
27 mm
Minimum diameter shaft shoulder
Da max
45 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
