FAG 3305-BD-XL-2HRS
Angular Contact Ball Bearings
Angular contact ball bearing 33..-BD-XL-2HRS, double row, X-life, seals, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

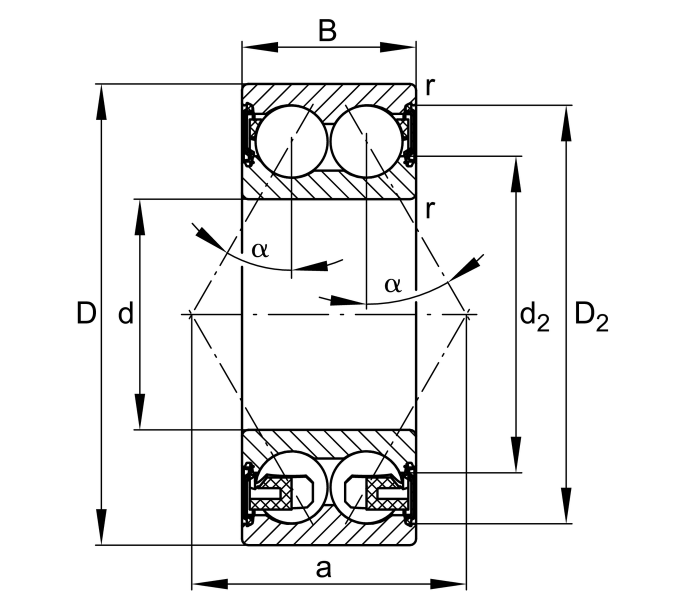

Main Dimensions & Performance Data
d
25 mm
Bore diameter
D
62 mm
Outside diameter
B
25.4 mm
Width
Cr
31,500 N
Basic dynamic load rating, radial
C0r
21,000 N
Basic static load rating, radial
Cur
1,460 N
Fatigue load limit, radial
nG
9,300 1/min
Limiting speed
≈m
0.36 kg
Weight

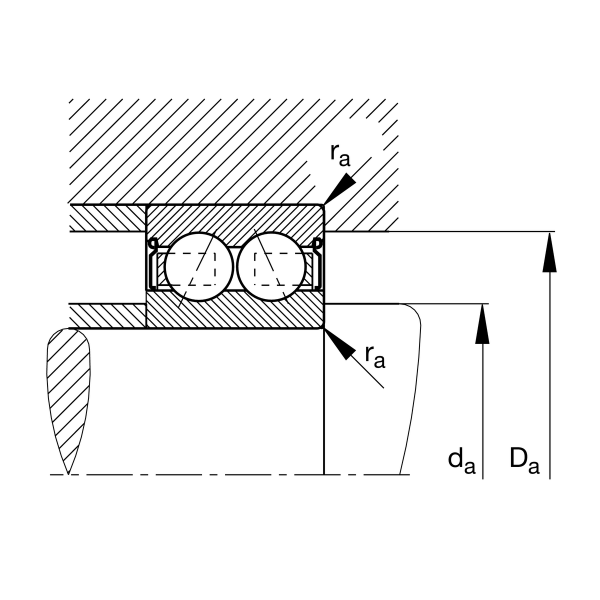

Mounting dimensions
da min
32 mm
Minimum diameter shaft shoulder
Da max
55 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
