FAG 3306-BD-XL
Angular Contact Ball Bearings

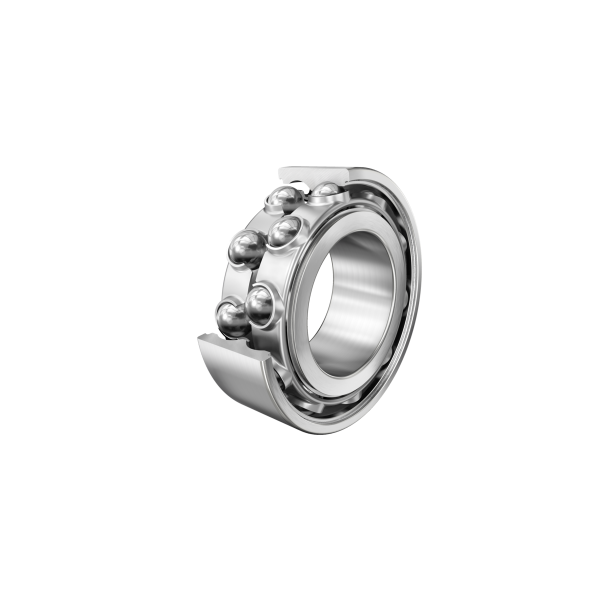

Angular contact ball bearing 33..-BD-XL, double row, X-life, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

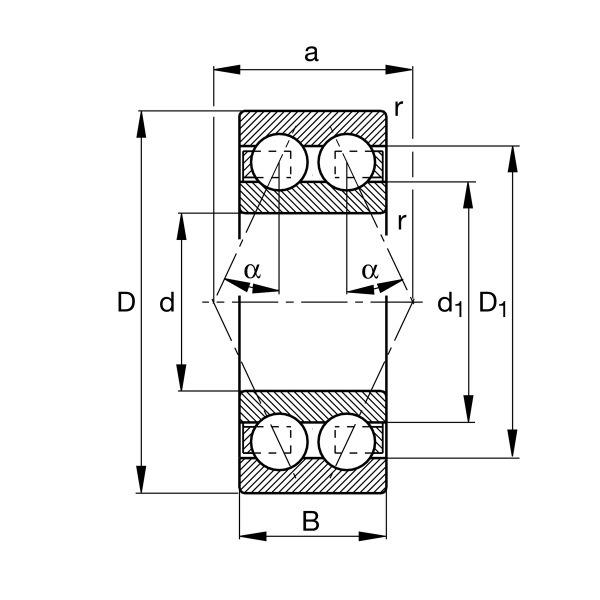

Main Dimensions & Performance Data
d
30 mm
Bore diameter
D
72 mm
Outside diameter
B
30.2 mm
Width
Cr
43,000 N
Basic dynamic load rating, radial
C0r
29,500 N
Basic static load rating, radial
Cur
2,050 N
Fatigue load limit, radial
nG
10,400 1/min
Limiting speed
nϑr
8,500 1/min
Reference speed
≈m
0.55 kg
Weight

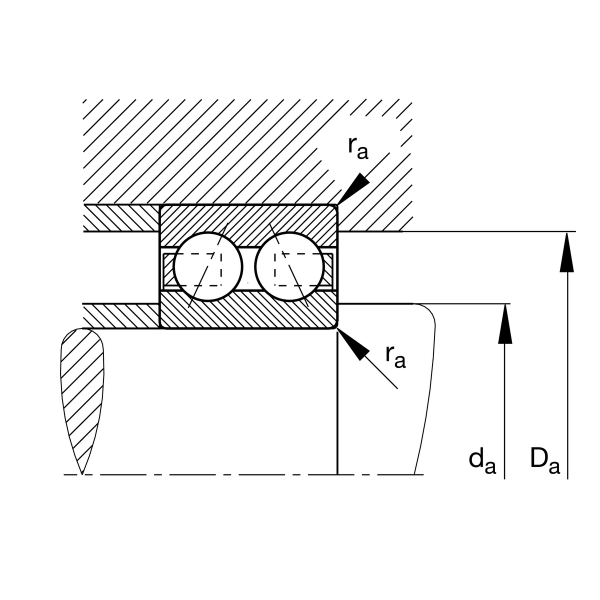

Mounting dimensions
da min
37 mm
Minimum diameter shaft shoulder
Da max
65 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum fillet radius
