FAG 3307-BD-XL-TVH
Angular Contact Ball Bearings

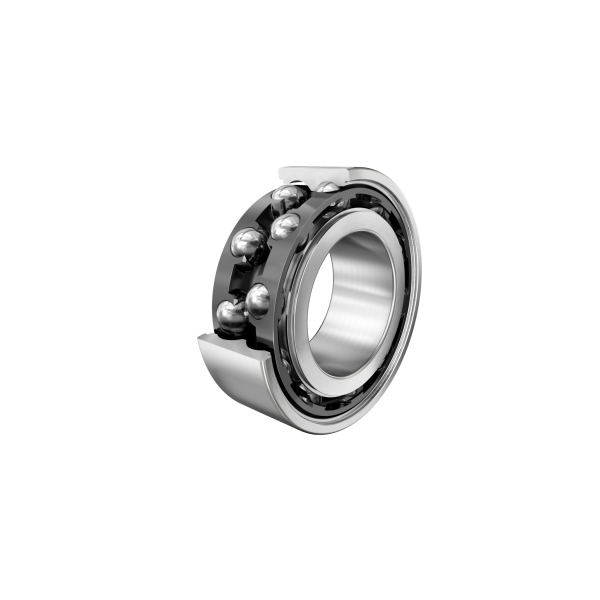

Angular contact ball bearing 33..-BD-XL-TVH, double row, X-life, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

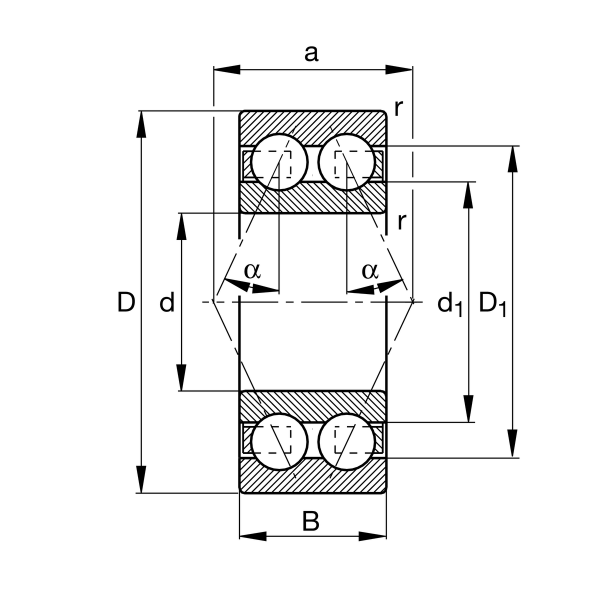

Main Dimensions & Performance Data
d
35 mm
Bore diameter
D
80 mm
Outside diameter
B
34.9 mm
Width
Cr
55,000 N
Basic dynamic load rating, radial
C0r
36,500 N
Basic static load rating, radial
Cur
2,550 N
Fatigue load limit, radial
nG
9,000 1/min
Limiting speed
nϑr
8,100 1/min
Reference speed
≈m
0.7 kg
Weight

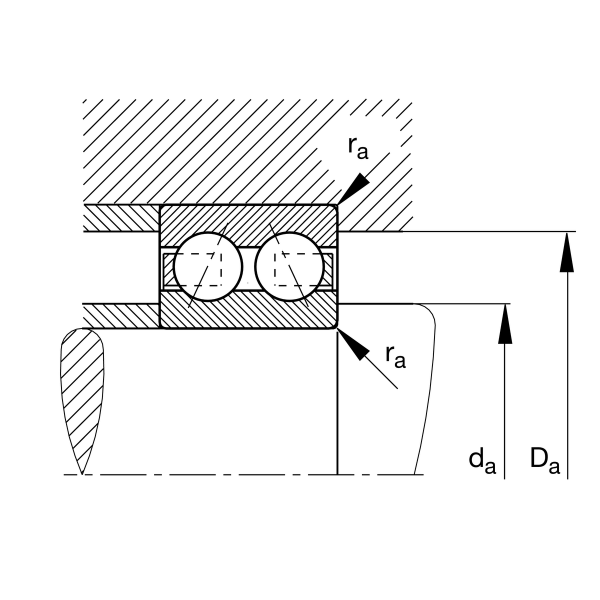

Mounting dimensions
da min
44 mm
Minimum diameter shaft shoulder
Da max
71 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum fillet radius
