FAG 3314-BD-XL-2Z-TVH
Angular Contact Ball Bearings

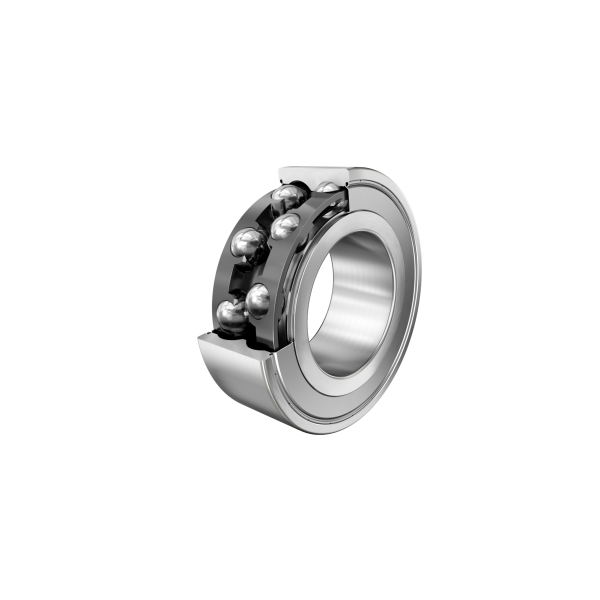

Angular contact ball bearing 33..-BD-XL-2Z-TVH, double row, X-life, shields, plastic cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com

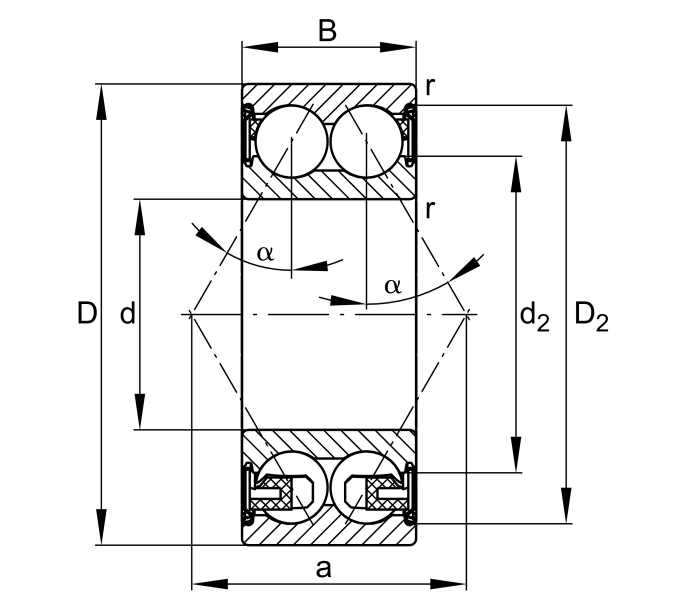

Main Dimensions & Performance Data
d
70 mm
Bore diameter
D
150 mm
Outside diameter
B
63.5 mm
Width
Cr
172,000 N
Basic dynamic load rating, radial
C0r
135,000 N
Basic static load rating, radial
Cur
8,900 N
Fatigue load limit, radial
nG
3,400 1/min
Limiting speed
nϑr
5,100 1/min
Reference speed
≈m
4.5 kg
Weight

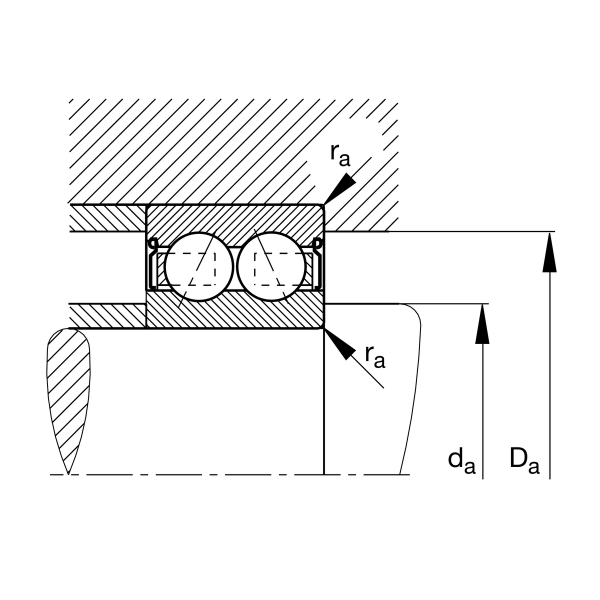

Mounting dimensions
da min
82 mm
Minimum diameter shaft shoulder
Da max
138 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum fillet radius
