FAG 511/500-MP
Axial Ball Bearings
Axial deep groove ball bearing 511..-MP, single direction, solid brass cage
(BRAND):FAG
(Availability):In Stock
(EMAIL):info@noksbearings.com
REQUEST A QUOTE
Detailed data of Product
similar to product
Detailed data of
511/500-MP
Axial Ball Bearings

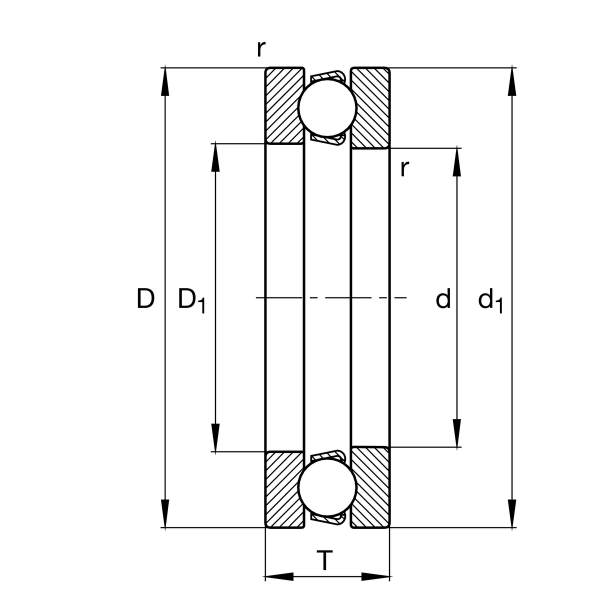

Main Dimensions & Performance Data
d
500 mm
Inner diameter shaft washer
D
600 mm
Outer diameter housing washer
T
80 mm
Height
C
a
550,000 N
Basic dynamic load rating, axial
C
0a
3,300,000 N
Basic static load rating, axial
C
ua
65,000 N
Fatigue load limit, axial
C
G
830 1/min
Limiting speed
nϑr
630 1/min
Reference speed
≈m
44 kg
Weight

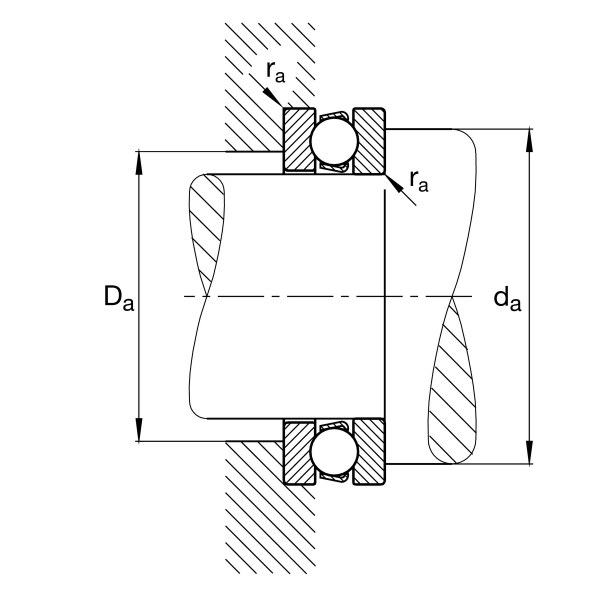

Mounting dimensions
d
a min
560 mm
Minimum diameter shaft shoulder
d
a min
540 mm
Maximum diameter of housing shoulder
r
a max
2.1 mm
Maximum filled radius
