FAG 51101

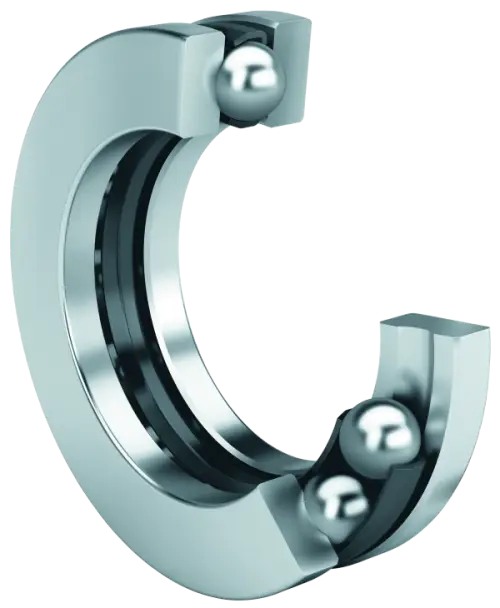

Axial Ball Bearings
Axial deep groove ball bearing 511, single direction, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
12 mm
Inner diameter shaft washer
D
26 mm
Outer diameter housing washer
T
9 mm
Height
Ca
10,300 N
Basic dynamic load rating, axial
C0a
15,400 N
Basic static load rating, axial
Cua
710 N
Fatigue load limit, axial
CG
13,100 1/min
Limiting speed
nϑr
16,900 1/min
Reference speed
≈m
21 g
Weight
Mounting dimensions
da min
20 mm
Minimum diameter shaft shoulder
da min
18 mm
Maximum diameter of housing shoulder
ra max
0.3 mm
Maximum filled radius
