FAG 51152-MP

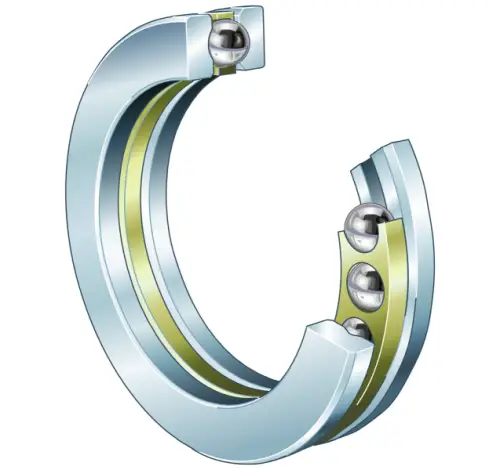

Axial deep groove ball bearing 511..-MP, single direction, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
260 mm
Inner diameter shaft washer
D
320 mm
Outer diameter housing washer
T
45 mm
Height
Ca
245,000 N
Basic dynamic load rating, axial
C0a
1,070,000 N
Basic static load rating, axial
Cua
29,000 N
Fatigue load limit, axial
CG
1,560 1/min
Limiting speed
nϑr
1,390 1/min
Reference speed
≈m
8.03 kg
Weight
Mounting dimensions
da min
296 mm
Minimum diameter shaft shoulder
da min
284 mm
Maximum diameter of housing shoulder
ra max
1.5 mm
Maximum filled radius
