FAG 51204

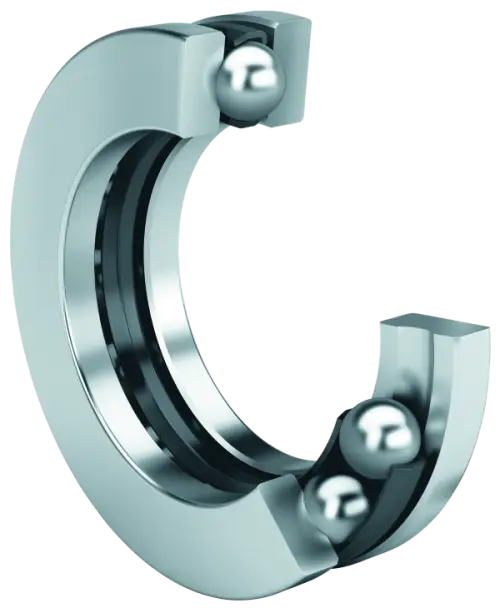

Axial Ball Bearings
Axial deep groove ball bearing 512, single direction, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
20 mm
Inner diameter shaft washer
D
40 mm
Outer diameter housing washer
T
14 mm
Height
Ca
21,100 N
Basic dynamic load rating, axial
C0a
37,500 N
Basic static load rating, axial
Cua
1,700 N
Fatigue load limit, axial
CG
8,500 1/min
Limiting speed
nϑr
11,600 1/min
Reference speed
≈m
82 g
Weight
Mounting dimensions
da min
32 mm
Minimum diameter shaft shoulder
da min
28 mm
Maximum diameter of housing shoulder
ra max
0.6 mm
Maximum filled radius
