FAG 51248-MP

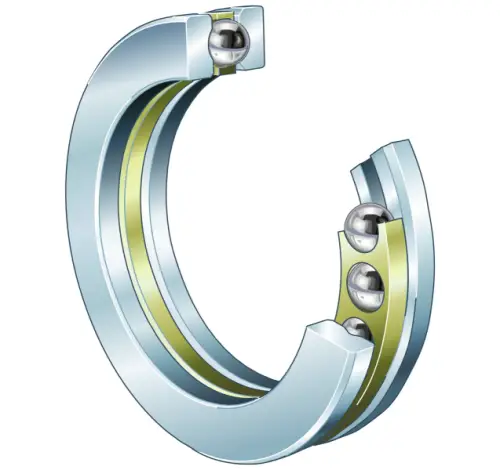

Axial deep groove ball bearing 512..-MP, single direction, solid brass cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
240 mm
Inner diameter shaft washer
D
340 mm
Outer diameter housing washer
T
78 mm
Height
Ca
435,000 N
Basic dynamic load rating, axial
C0a
1,840,000 N
Basic static load rating, axial
Cua
49,000 N
Fatigue load limit, axial
CG
1,200 1/min
Limiting speed
nϑr
1,510 1/min
Reference speed
≈m
22.7 kg
Weight
Mounting dimensions
da min
300 mm
Minimum diameter shaft shoulder
da min
280 mm
Maximum diameter of housing shoulder
ra max
2.1 mm
Maximum filled radius
