FAG 51406

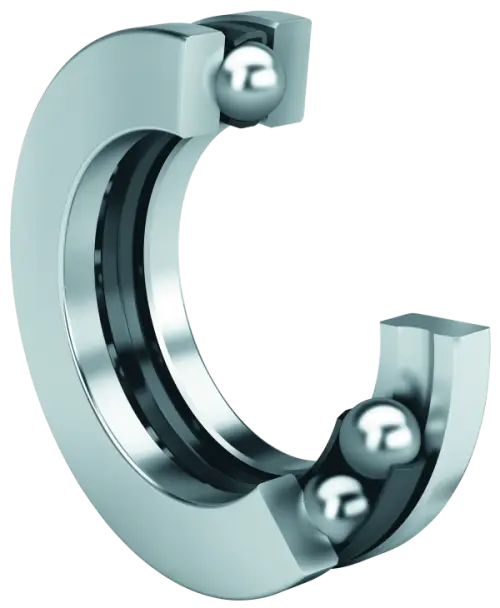

Axial deep groove ball bearing 514, single direction, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock

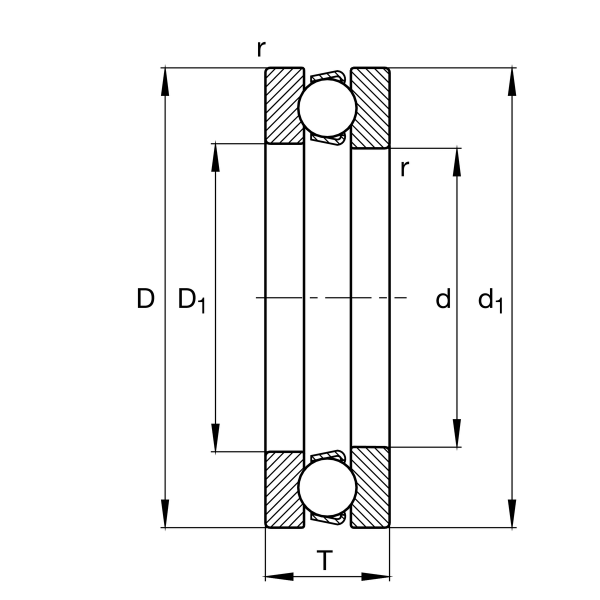

Main Dimensions & Performance Data
d
30 mm
Inner diameter shaft washer
D
70 mm
Outer diameter housing washer
T
28 mm
Height
Ca
70,000 N
Basic dynamic load rating, axial
C0a
112,000 N
Basic static load rating, axial
Cua
5,200 N
Fatigue load limit, axial
CG
3,850 1/min
Limiting speed
nϑr
9,100 1/min
Reference speed
≈m
0.491 kg
Weight

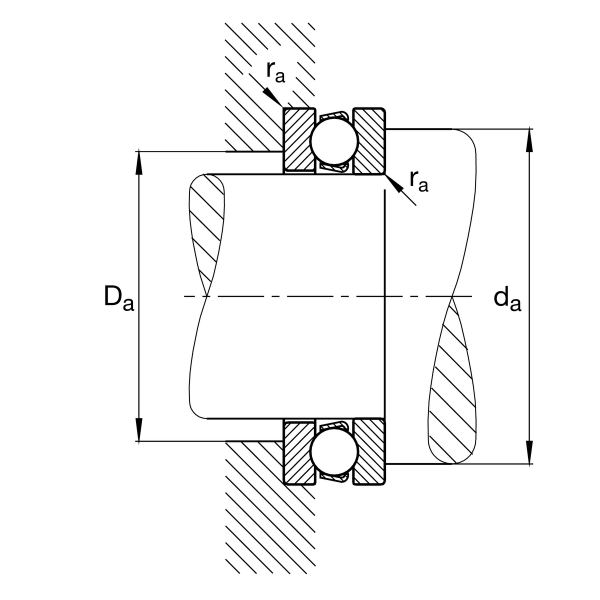

Mounting dimensions
da min
54 mm
Minimum diameter shaft shoulder
da min
46 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum filled radius
