FAG 52409
Axial Ball Bearings
Axial deep groove ball bearing 524, double direction, steel sheet metal cage
(BRAND):FAG
(Availability):In Stock
(EMAIL):info@noksbearings.com
REQUEST A QUOTE
Detailed data of Product
similar to product
Detailed data of
52409
Axial Ball Bearings

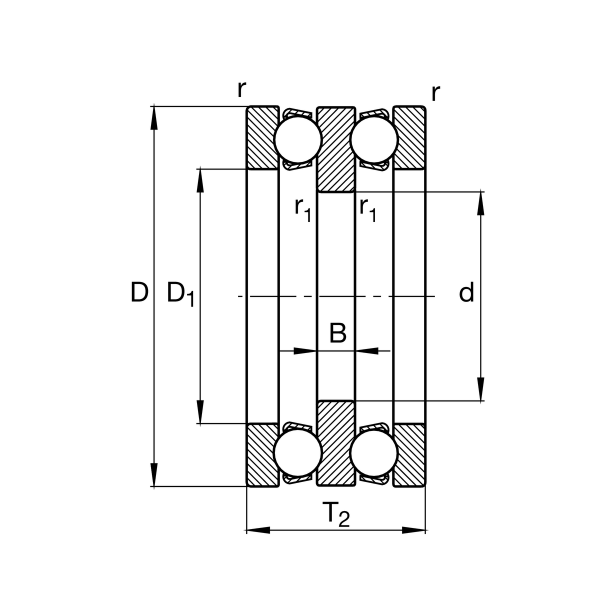

Main Dimensions & Performance Data
d
35 mm
Inner diameter shaft washer
D
100 mm
Outer diameter housing washer
T2
72 mm
Height
C
a
123,000 N
Basic dynamic load rating, axial
C
0a
222,000 N
Basic static load rating, axial
C
ua
10,100 N
Fatigue load limit, axial
C
G
2,850 1/min
Limiting speed
nϑr
6,500 1/min
Reference speed
≈m
2.642 kg
Weight

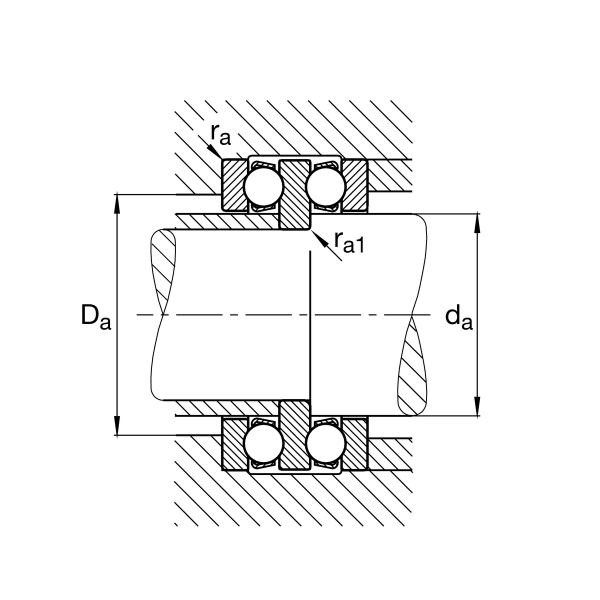

Mounting dimensions
d
a max
45 mm
Maximum diameter shaft shoulder
d
a min
67 mm
Maximum diameter of housing shoulder
r
a max
1 mm
Maximum filled radius
r
a1 max
0.6 mm
Maximum filled radius
