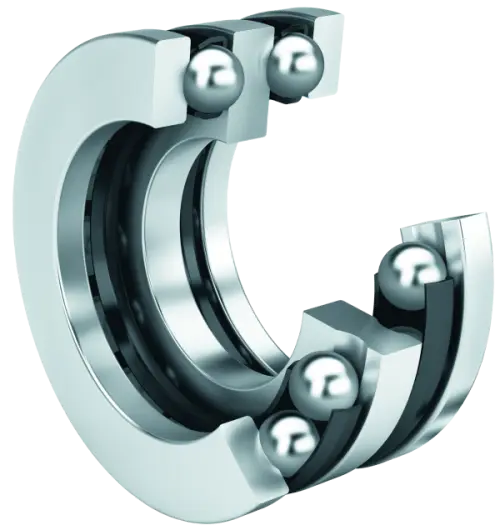

FAG 52411

(BRAND)：FAG

(Availability)：In Stock

(EMAIL)：info@noksbearings.com

Detailed data of

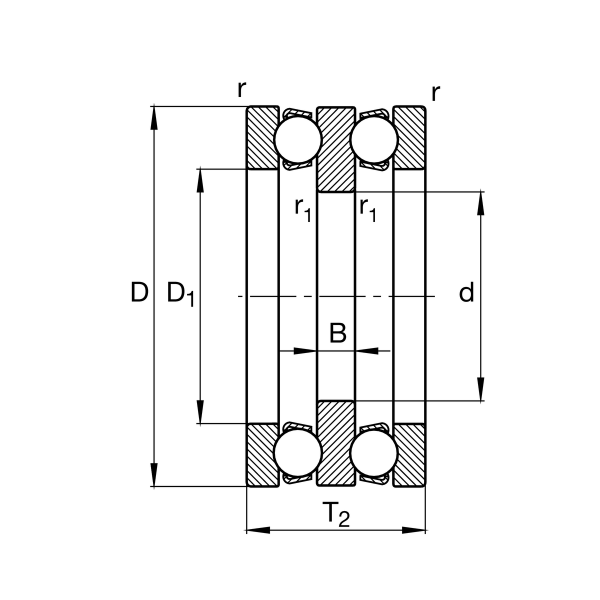

d 45 mm Inner diameter shaft washer

D 120 mm Outer diameter housing washer

T2 87 mm Height

C_a 167,000 N Basic dynamic load rating, axial

C_0a 315,000 N Basic static load rating, axial

C_ua 14,400 N Fatigue load limit, axial

C_G 2,340 1/min Limiting speed

nϑr 5,600 1/min Reference speed

≈m 4.7 kg Weight

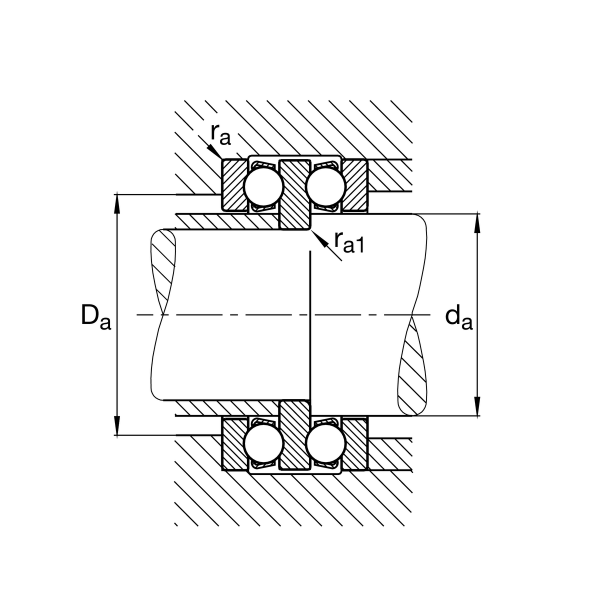

d_{a max} 55 mm Maximum diameter shaft shoulder

d_{a min} 81 mm Maximum diameter of housing shoulder

r_{a max} 1.5 mm Maximum filled radius

r_{a1 max} 0.6 mm Maximum filled radius
