FAG 53306
Axial Ball Bearings
Axial deep groove ball bearing 533, single direction, with spherical housing washer, steel sheet metal cage
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
30 mm
Inner diameter shaft washer
D
60 mm
Outer diameter housing washer
T
22.6 mm
Height
Ca
35,500 N
Basic dynamic load rating, axial
C0a
65,000 N
Basic static load rating, axial
Cua
2,950 N
Fatigue load limit, axial
CG
5,700 1/min
Limiting speed
nϑr
9,300 1/min
Reference speed
≈m
0.261 kg
Weight

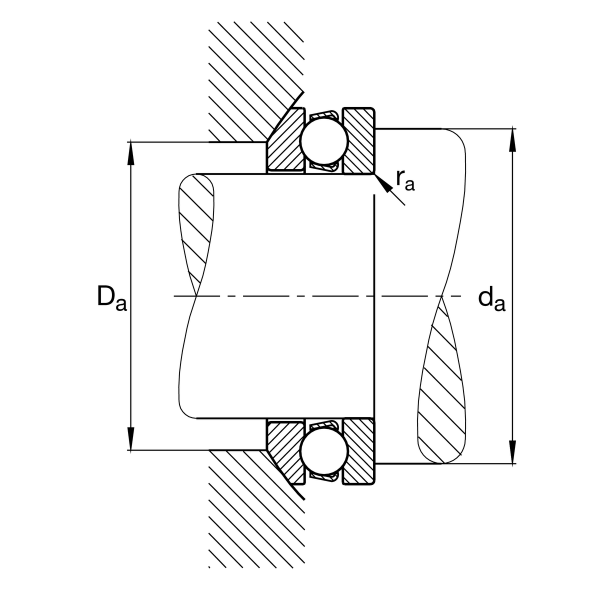

Mounting dimensions
da min
48 mm
Minimum diameter shaft shoulder
da min
45 mm
Maximum diameter of housing shoulder
ra max
1 mm
Maximum filled radius
