FAG 6022-J20C

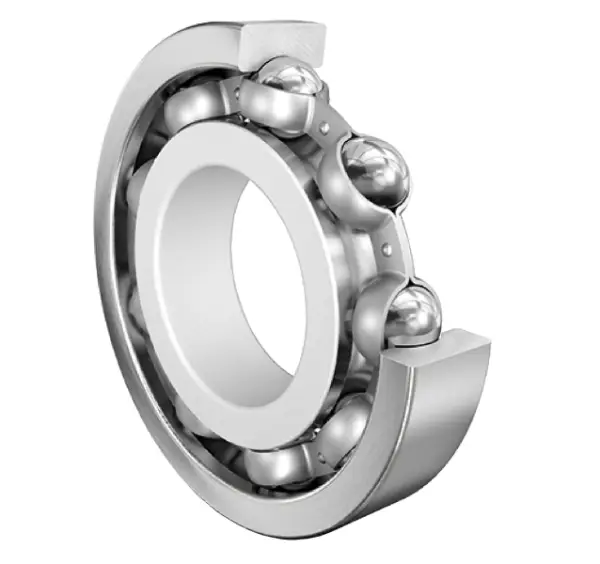

Deep groove ball bearing 60..-J20C, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock
(EMAIL)：info@noksbearings.com
Main Dimensions & Performance Data
d
110 mm
Bore diameter
D
170 mm
Outside diameter
B
28 mm
Width
Cr
85,000 N
Basic dynamic load rating, radial
C0r
71,000 N
Basic static load rating, radial
Cur
3,550 N
Fatigue load limit, radial
CG
5,300 1/min
Limiting speed
nϑr
4,850 1/min
Reference speed
≈m
2.06 kg
Weight
Mounting dimensions
da min
118.8 mm
Minimum diameter shaft shoulder
da min
161.2 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius
