FAG 6024-J20AB-C3

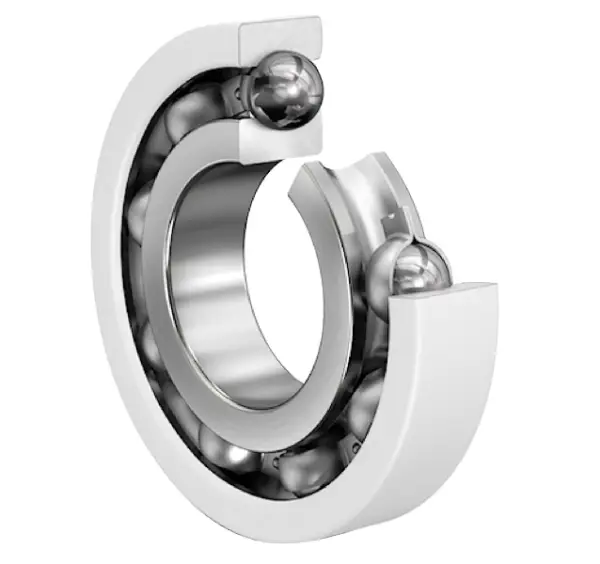

Deep groove ball bearing 60..-J20AB, single row, steel sheet metal cage, ceramic coated
(BRAND)：FAG
(Availability)：In Stock

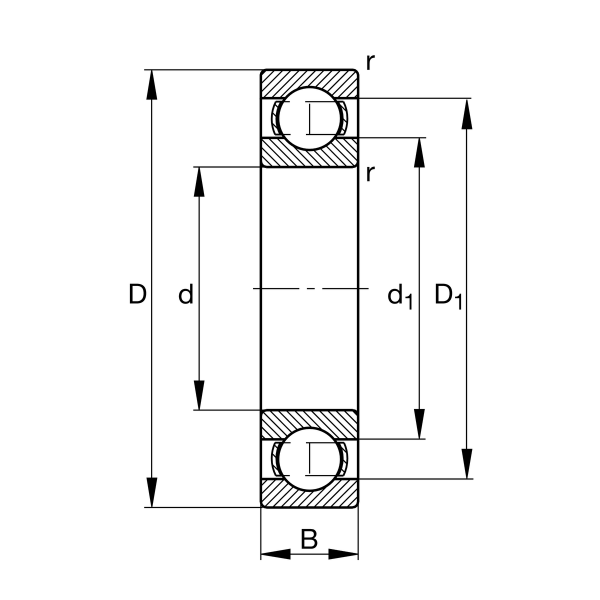

Main Dimensions & Performance Data
d
120 mm
Bore diameter
D
180 mm
Outside diameter
B
28 mm
Width
Cr
88,000 N
Basic dynamic load rating, radial
C0r
77,000 N
Basic static load rating, radial
Cur
3,650 N
Fatigue load limit, radial
CG
5,000 1/min
Limiting speed
nϑr
4,450 1/min
Reference speed
≈m
2.14 kg
Weight

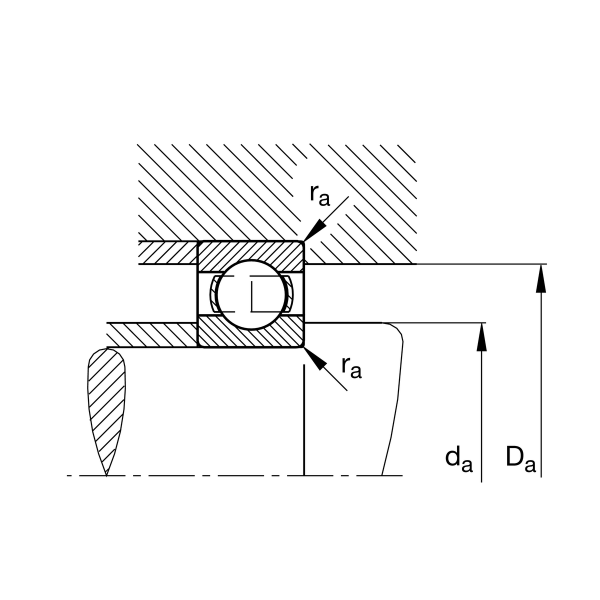

Mounting dimensions
da min
128.8 mm
Minimum diameter shaft shoulder
da min
171.2 mm
Maximum diameter of housing shoulder
ra max
2 mm
Maximum fillet radius
